![Modular Ultra Lo-Ram EFI Intake Manifold GM LS3/L92 [Black] Single Injector w/Burst Panel Flange](https://www.jegs.com/images/mini_750/500/510/510-300-682bk.jpg)

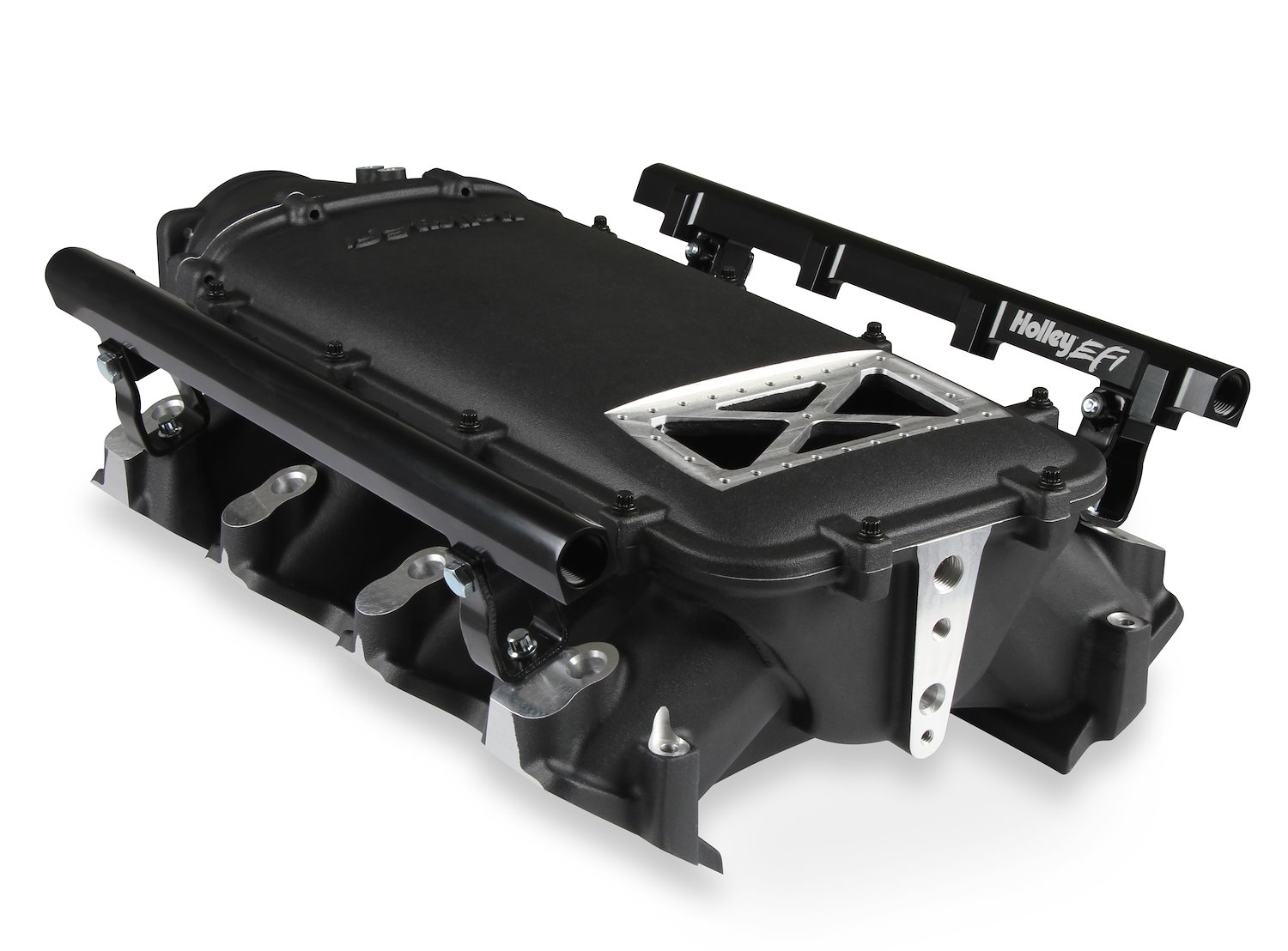

Modular Ultra Lo-Ram EFI Intake Manifold GM LS3/L92 [Black] Single Injector w/Burst Panel Flange
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
LS3/L92
Holley 300-682BK Features:
- Single fuel injector design for forced-inducted supercharged or turbocharged engines (7,000-8,000 rpm peak power)
- Front-feed plenum entry
- Modular design facilitates custom inlet duct and throttle body placement
- The low manifold height fits under stock hoods or mildly modified hoods in the front-feed configuration
- Clearance for C6 Corvette cowls and hoods without modification
- Lo-Ram Base Intake Manifold Plenum Top Mounting Flange Height (5.170 in.)
- Front Feed Plenum Configuration w/105 mm Throttle Body Adapter (6.860 in.)
- Cast Aluminum Black Powder-Coat Finish
- Includes high volume fuel rails with 8 AN (3/4 in. (.750) -16) O-ring ports and mounting hardware
- Brackets for the fuel rail kit consist of a "standard length" set for long fuel injectors, and another set for short fuel injectors (such as Pico or LS7)
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Low-Profile Intakes for the Street or Strip!
Holley Modular Lo-Ram and Ultra Lo-Ram Intake Manifolds deliver big performance within a low-profile package. Each intake manifold features short runners and a large 105 mm throttle body opening for forced-induction engines. The low plenum height allows for fitting under most stock hoods, making them an excellent choice for both street or strip applications, providing race-inspired performance and appearance.
