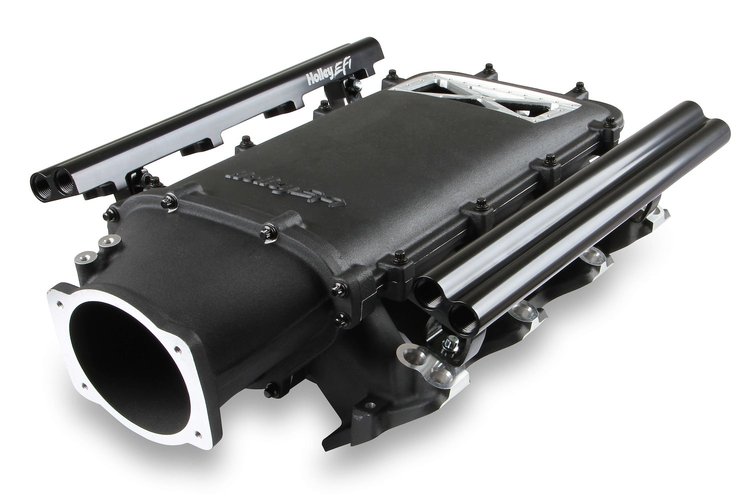

Modular Ultra Lo-Ram EFI Intake Manifold GM LS3/L92 [Black] Dual Injector w/Burst Panel Flange

Name: Modular Ultra Lo-Ram EFI Intake Manifold GM LS3/L92 [Black] Dual Injector w/Burst Panel Flange
Brand: HOLLEY
SKU: 510-300-684BK
Price: 949.95 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Intake Manifold
LS3/L92

Modular Ultra Lo-Ram Intake w/Burst Panel Flange

GM LS Gen III & IV with LS3/L92 Cylinder Heads

Front Feed Plenum

105 mm Throttle Body Opening

Dual Fuel Injector Design

Black Finish

Includes High-Volume Fuel Rails

Sold Individually

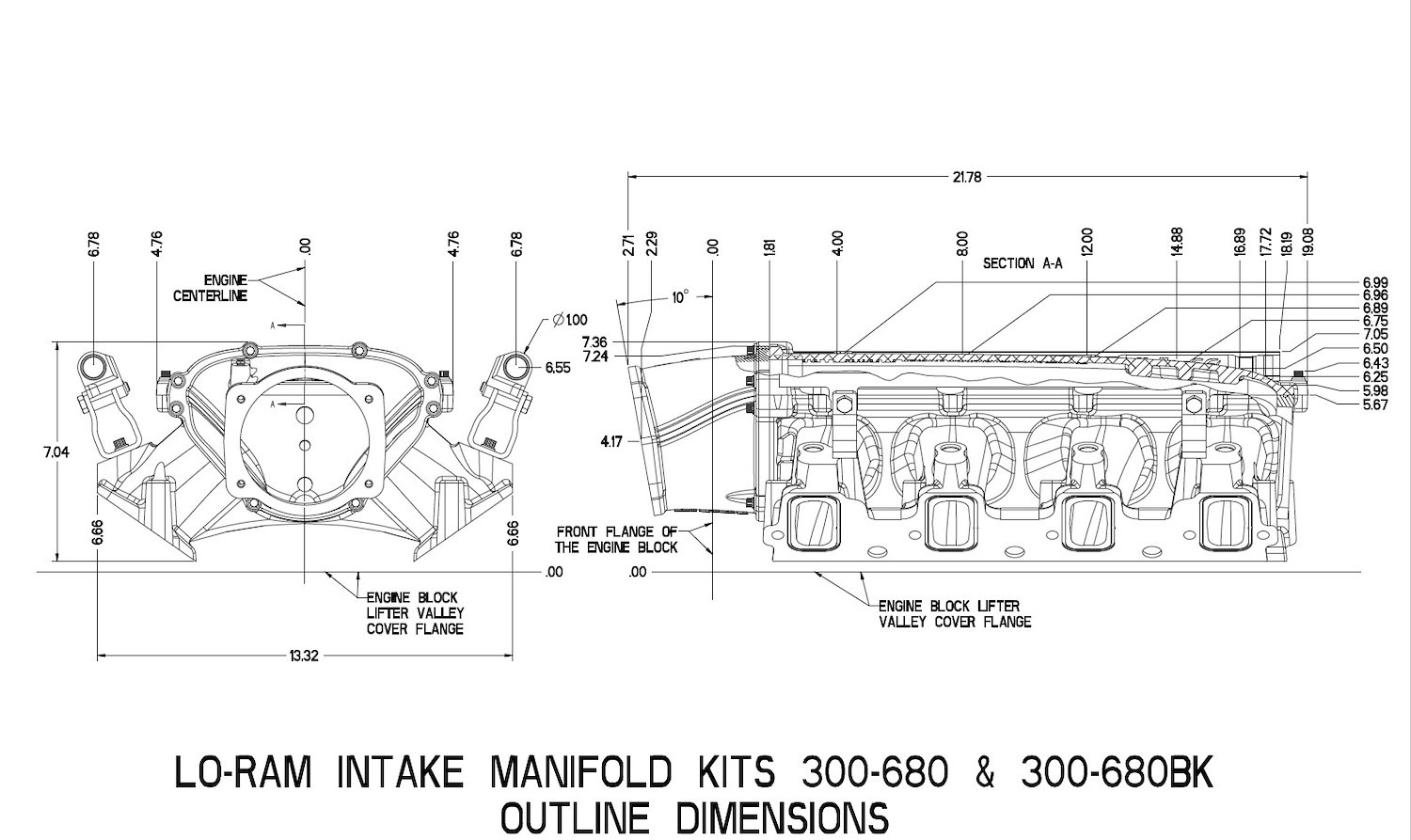

Dimensions

Included Items

Holley 300-684BK Features:

Dual fuel injector design for forced-inducted supercharged or turbocharged engines (7,000-8,000 rpm peak power)
Front-feed plenum entry
Modular design facilitates custom inlet duct and throttle body placement
The low manifold height fits under stock hoods or mildly modified hoods in the front-feed configuration
Clearance for C6 Corvette cowls and hoods without modification
Lo-Ram Base Intake Manifold Plenum Top Mounting Flange Height (5.170 in.)
Front Feed Plenum Configuration w/105 mm Throttle Body Adapter (6.860 in.)
Cast Aluminum Black Powder Coat Finish
Includes high volume fuel rails with 8 AN (3/4 in. (.750) -16) O-ring ports and mounting hardware
- Brackets for the fuel rail kit consist of a "standard length" set for long fuel injectors, and another set for short fuel injectors (such as Pico or LS7)

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Low-Profile Intakes for the Street or Strip!

Holley Modular Lo-Ram and Ultra Lo-Ram Intake Manifolds deliver big performance within a low-profile package. Each intake manifold features short runners and a large 105 mm throttle body opening for forced-induction engines. The low plenum height allows for fitting under most stock hoods, making them an excellent choice for both street or strip applications, providing race-inspired performance and appearance.

Part TypeIntake Manifold

Product LineHolley GM LS Modular Lo-Ram and Ultra Lo-Ram Intake Manifolds

BrandHOLLEY

Package Height15.0

Package Width16.0

Package Length20.0

Weight33.07 PG

Part CategoryPerformance Parts

EgrNo

UsageStreet/Strip

Intake MaterialAluminum

Throttle Body IncludedNo
