Oil Pans

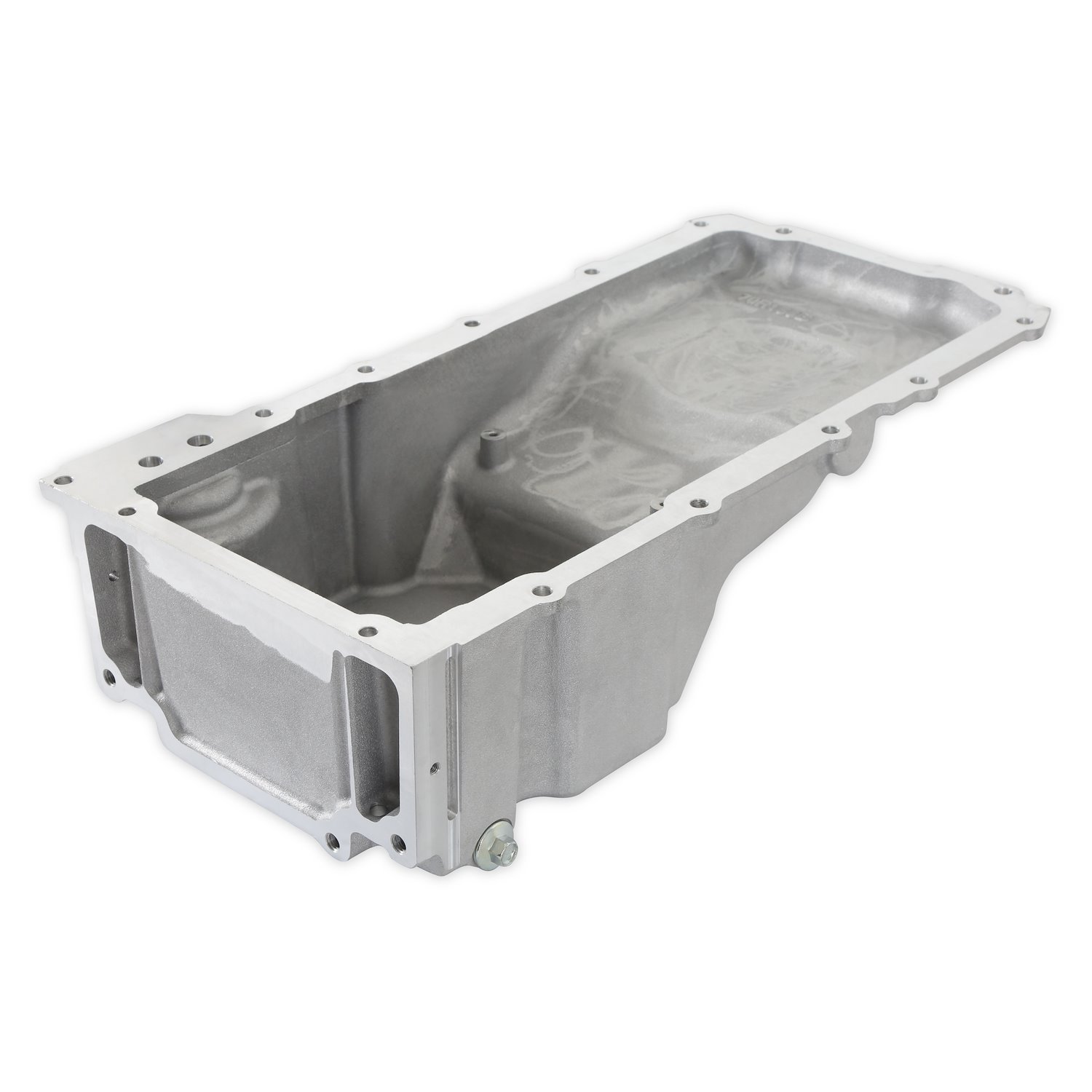

GM LS Swap Oil Pan
  • Fits 1955-1987 GM Muscle Car/Classic Car/Pickup Trucks and Ford Mustang Fox Body
  • For Naturally Aspirated Applications
  • Aluminum
  • Cast Finish

    Holley 302-5 GM LS Swap Oil Pan Features:

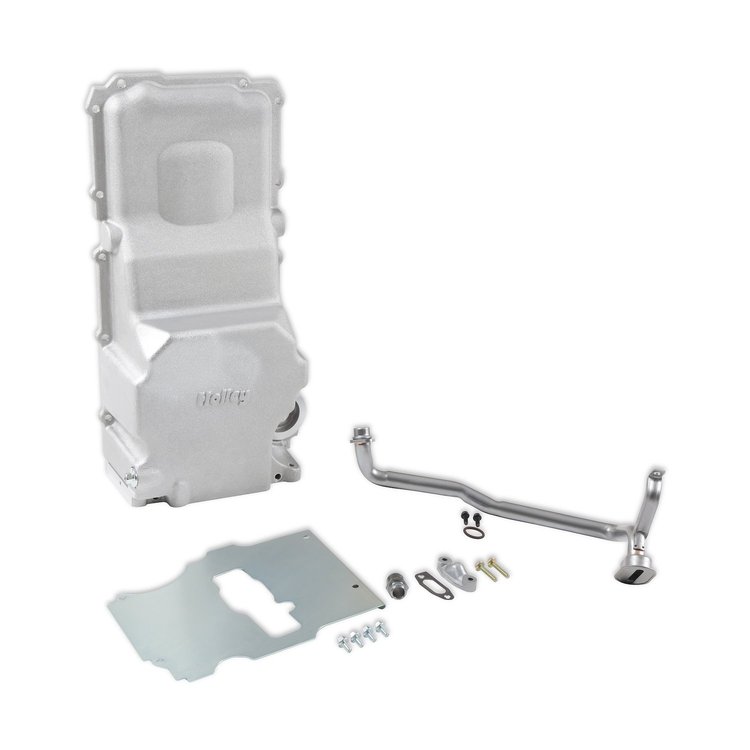

    • Includes sump baffle, OE style pick-up tube, sump plug, oil filter stud, and oil passage cover
    • 4 in. stroke crankshaft clearance
    • 5.6-quart sump capacity, 6.1-quart total capacity with stock oil filter
    • Provides adequate oil pan to chassis clearance around the front half of the pan
    • Revised sump to provide extra chassis and steering rack clearance
    • Compatible with OE fitment for oil filter mounting, oil cooler port provisions, engine NVH suppression, bell-housing attachments, flange gasket, and sealing
    • Provides maximum clearance for applications where the steering linkage is behind the engine cross member

    Holley 302-5 GM LS Swap Oil Pan Notes:

    • Similar to the Holley 302-3 but designed for naturally aspirated applications as the turbo oil drain-back holes and plugs are removed
    • Requires use of Holley 302-15 Dipstick and Tube Kit or GM LS3 dipstick (GM P/N 12669528) and tube (GM P/N 12625031)
    • The engine location may need to be adjusted (up / down or fore/aft) for crossmember or steering linkage clearance depending on the vehicle, steering configuration, and chassis type
    • Designed to use a GM F-Body windage tray (GM P/N 12558253) - Modification to the windage tray is required to provide clearance to the pick-up tube. A full-length windage tray may be used if the front quarter of the tray is removed
    • Oil Pans That Ease the Pain of LS Engine Swaps

      GM Gen III & IV LS engine oil pans don't always fit older chassis, are too low for a hot rod, and do not provide enough ground clearance for 4WDs. Holley's Retrofit Engine Oil Pans provide maximum chassis and ground clearance.

    Part TypeOil Pan
    Product LineHolley GM LS Engine Retrofit Oil Pans
    BrandHOLLEY
    Package Height10.5
    Package Width14.6
    Package Length24.2
    Weight16.1 PG
    Oil Pan MaterialAluminum
    Gaskets IncludedNo
    Hardware IncludedYes
    Sump StyleWet
    Sump LocationRear
    Capacity5.6 Quarts
    QuantitySold as a kit
    Windage Tray IncludedNo
    Oil Pan FinishNatural
    Drain Plug IncludedYes
    Dipstick IncludedNo
    Stroker Clearanced4" Max
    Vendor Part Number302-5
    Package Qty1
    Package TypeEA
