![550-1080 Terminator X Stealth 4500 Dual Throttle Body (2 x 4) EFI System [Shiny Finish]](https://www.jegs.com/images/mini_750/500/510/510-550-1080.jpg)
HOLLEYPART NUMBER: 510-550-1080

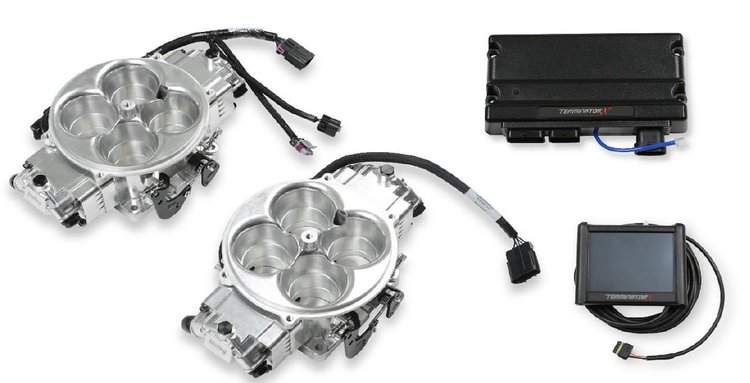

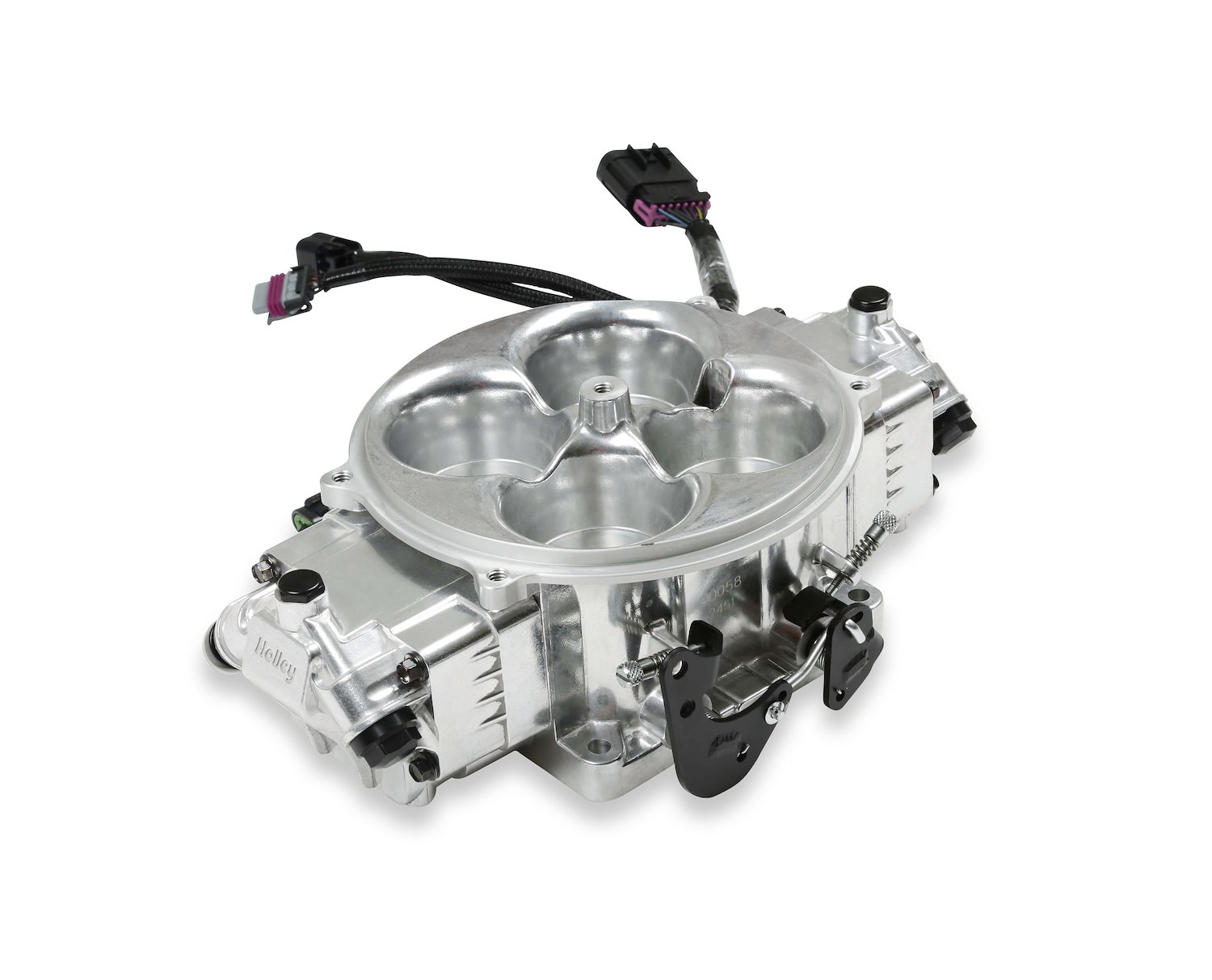

550-1080 Terminator X Stealth 4500 Dual Throttle Body (2 x 4) EFI System [Shiny Finish]
$3,35695$3949.95You Save$593.00
Terminator X Stealth 4500 Dual Throttle Body (2 x 4) EFI Systems
Terminator X Stealth 4500 Dual Throttle Body (2 x 4) EFI SystemReplaces Carburetors on Dual 4500 Carburetor Manifolds Supports up to 1500 HP (8) 100 lbs./hr. Injectors Flows 1440 CFM Self-Learning ECU Color Touchscreen Shiny Finish
Holley 550-1080 Terminator X Stealth 4500 Dual Throttle Body EFI System Features:
- Convert dual 4500 flanged manifolds from carburetors to EFI throttle bodies
- Supports up to 1500 horsepower naturally aspirated and 1250 HP forced induction
- (4) 100 lbs./hr. @ 58.5 PSI fuel injectors in each throttle body
- 2.1250 in. Throttle plates flow at a rate of 1440 CFM to support large cubic inch engines
- Gen III Ultra Dominator air cleaner flange and fuel line crossovers
- Engine control unit (ECU) self-learns fuel maps and supports distributor, ignition box, and crank trigger with easy-to-use calibration wizard
- High-resolution color touchscreen to be used for setup, tuning, and even gauges
- Bosch LSU 4.9 wideband O2 sensor with included weld-in bung enables MAP to learn
- Shiny finish
- Plug and play capability with Holley's EFI Pro Dash 12.300 in. or EFI Pro Dash 6.86 in., as well as EFI 8-Channel CAN EGT Controller, and Analog-Style Gauges and Components when using their EFI Gauge Module
Notes:
- Not for use with engines producing less than 800 horsepower
- Gasoline use only
- Use of leaded race fuels may shorten the service life of the WBO2 sensor
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeFuel Injection System
BrandHOLLEY
Package Height10.0
Package Width15.0
Package Length27.0
Weight33.0 PG
Part CategoryPerformance Parts
Wiring Harness IncludedYes
Fuel Pump IncludedNo
Venturi Quantity2x4
Throttle Body FinishPolished
Throttle Body IncludedYes
Fuel Pressure Regulator IncludedNo
QuantitySold as a Kit
Injectors IncludedYes
Tps Sensor IncludedYes
User TunableYes
Engine Make/SizeUniversal
Self TuningYes
Ecm IncludedYes
Calibration Module IncludedYes
Oxygen Sensor IncludedYes
Injector Size (Lbs./Hr.)100
Throttle Body Mounting FlangeDominator
Injection StyleThrottle body
Part FitmentSemi Universal
Airflow Rate (Cfm)4,500 cfm
Map Sensor IncludedYes
Vendor Part Number550-1080
Package Qty1
Package TypeEA
