Vehicle Info NeededHOLLEYPART NUMBER: 510-556-115

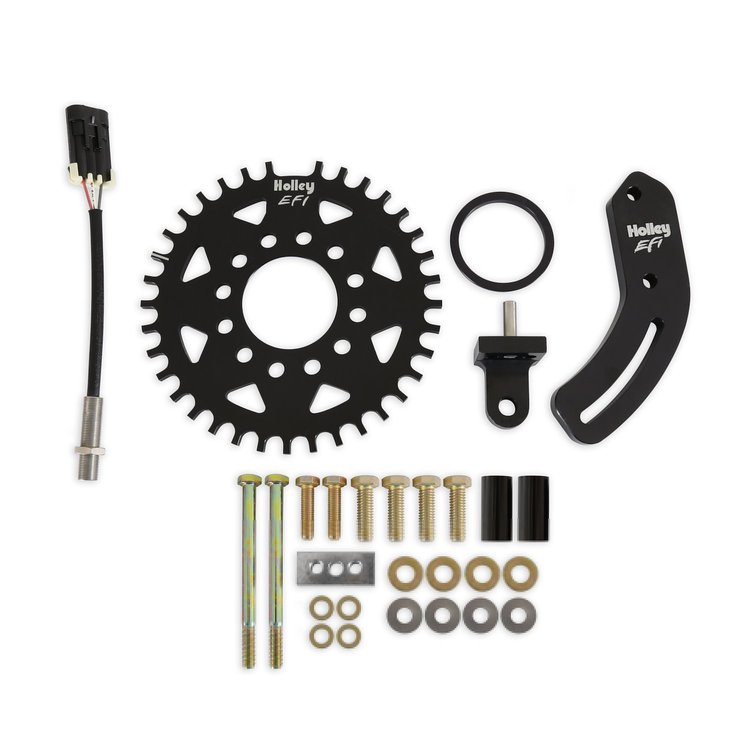

556-115 EFI Crank Trigger System for Ford Small Block Engines (7.250 in.)
$72795
1 left in stock
Ships Tomorrow
Lowest Price GuaranteeFord
Hall-Effect 7.250 in. Crank Trigger SystemFord Small Block Engines 36-1 Trigger System 1/4 in. Steel Trigger Wheel 3-Wire Hall-Effect Sensor Bolt-On Billet Aluminum Sensor Brackets
Holley 556-115 Features:
Holley's EFI Crank Trigger Kit is engineered to provide an accurate crank speed & position signal to Holley EFI systems in the most-demanding, high horsepower, racing applications. Crank position is measured every 10 degrees as opposed to every 45 degrees for a standard 4-Magnet, MSD "style" Crank trigger. It is designed for use on SBF applications using a standard ATI or Fluidamper "style" balancer up to 7-1/4" in diameter.- 7.25” diameter, 1/4” thick, billet steel, 36-1 tooth, crank wheel with Black Zinc Oxide finish for superior corrosion resistance & striking good looks.
- Crank wheel centers off of the balancer’s hub, eliminating the need for a centering ring
- All billet, 6061-T6 aluminum sensor mounting brackets with “bright-dipped” black anodized finish & Laser etched Holley EFI logo
- Custom 3-wire, ferrous-target, Hall-effect sensor with M12X1mm threads for finer gap adjustment
- All Grade 8 & Mil. Spec mounting hardware
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeIgnition Crank Trigger Kit
BrandHOLLEY
Package Height2.5
Package Width10.5
Package Length11.0
Weight3.64 PG
Part CategoryPerformance Parts
Hardware IncludedYes
Pickup IncludedYes
Adjustable Mounting Bracket IncludedYes
QuantitySold as a Kit
Part FitmentSemi Universal
Crank Trigger Wheel IncludedYes
Bracket MaterialBillet aluminum
Vendor Part Number556-115
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
