Vehicle Info NeededHOLLEYPART NUMBER: 510-556-116

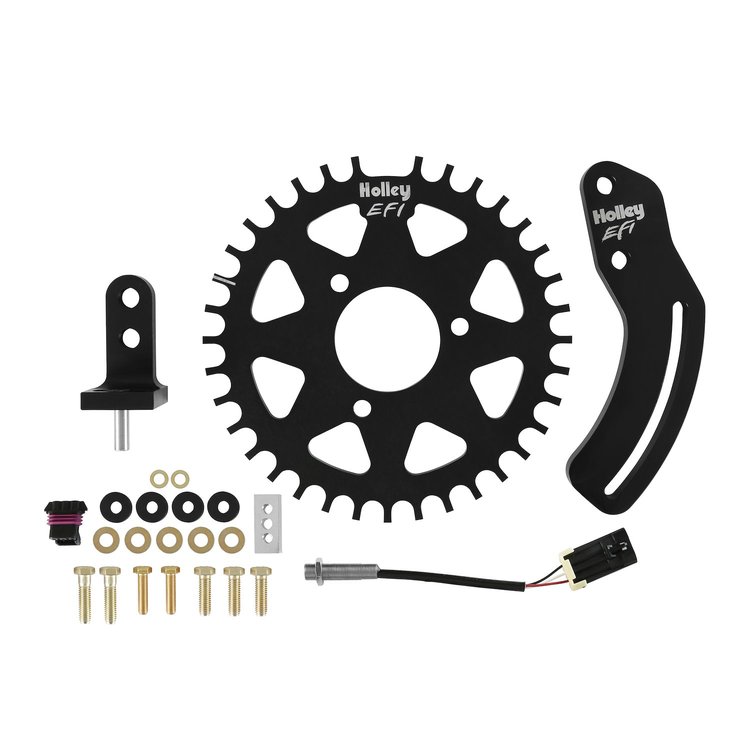

556-116 EFI Crank Trigger System for Chevy Small Block Engines (8 in.)
$79995
4 left in stock
Ships Tomorrow
Lowest Price GuaranteeGM
- Hall-Effect 8 in. Crank Trigger System
- Chevy Small Block Engines
- 36-1 Trigger System
- 1/4 in. Steel Trigger Wheel
- 3-Wire Hall-Effect Sensor
- Bolt-On Billet Aluminum Sensor Brackets
Kit Includes: - 8" diameter, 1/4" thick, billet steel, 36-1 tooth, crank wheel with Black Zinc Oxide finish for superior corrosion resistance & striking good looks.
- Crank wheel centers off of the balancer's hub, eliminating the need for a centering ring.
- All billet, 6061-T6 aluminum sensor mounting brackets with "bright-dipped" black anodized finish & Laser etched Holley EFI logo.

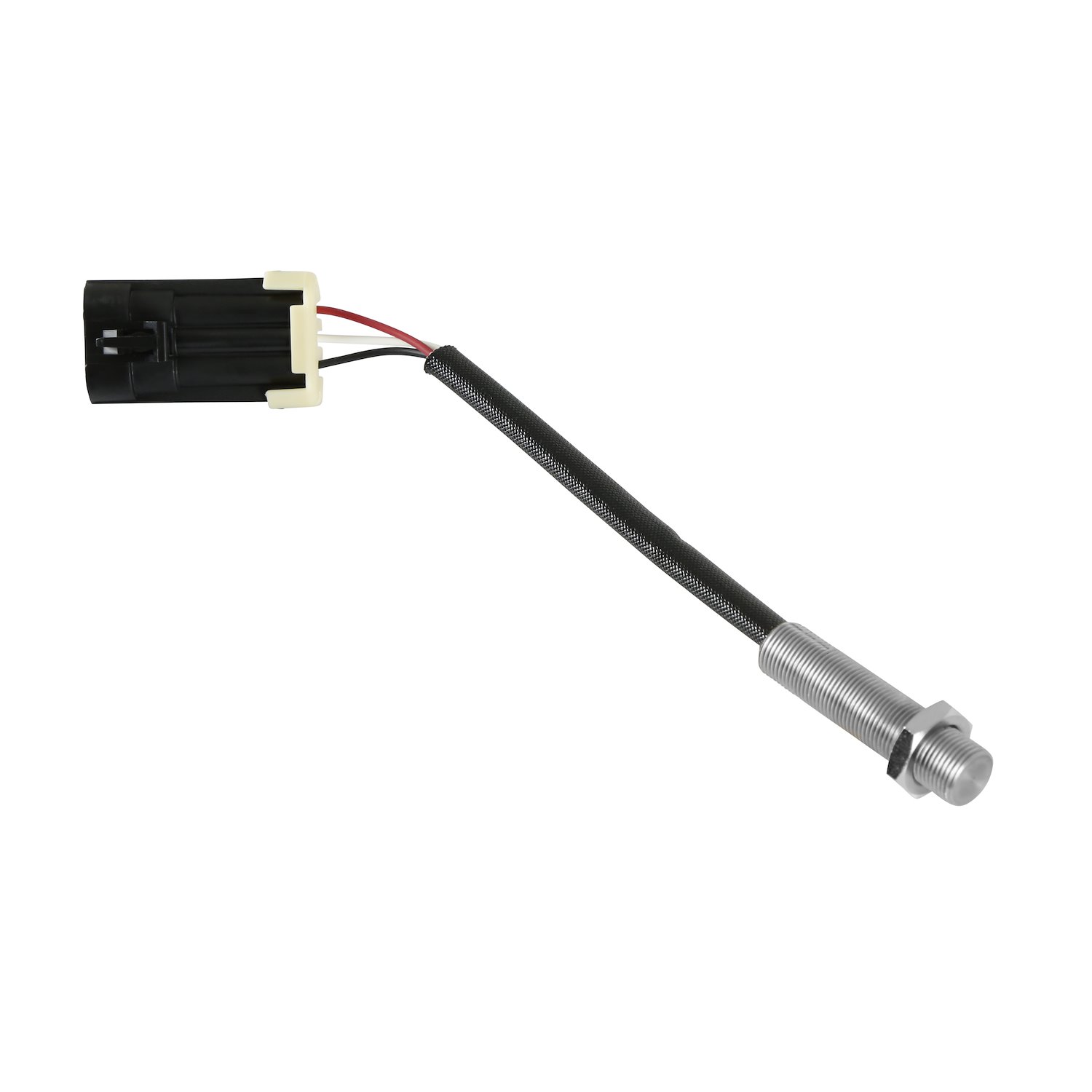

- Custom 3-wire, ferrous-target, Hall-effect sensor with M12X1mm threads for finer gap adjustment.
- All Grade 8 & Mil. Spec mounting hardware.NOTE: Will not work on balancers which do not have a center-hub extrusion.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeIgnition Crank Trigger Kit
BrandHOLLEY
Package Height2.5
Package Width10.5
Package Length10.5
Weight3.7 PG
Part CategoryPerformance Parts
Hardware IncludedYes
Pickup IncludedYes
Adjustable Mounting Bracket IncludedYes
QuantitySold as a Kit
Part FitmentSemi Universal
Crank Trigger Wheel IncludedYes
Bracket MaterialBillet aluminum
Vendor Part Number556-116
Package Qty1
Package TypeEA
