Ford Coyote

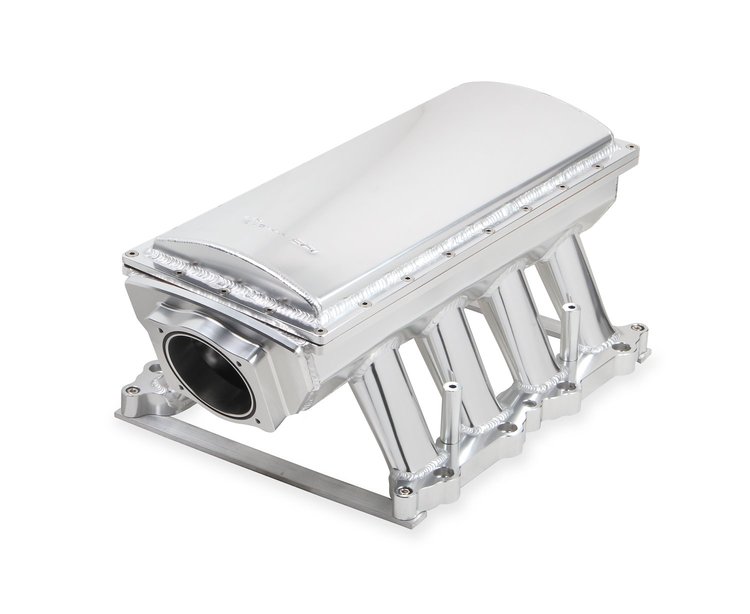

Sniper EFI Race Series Fabricated Intake Manifolds
  • 2011-2014 Ford Coyote 5.0L
  • 9.5" Tall
  • (3) 1/8" and (1) 1/4" Vacuum Ports
  • 90mm Throttle-Body Bore
  • Bright Silver Finish

    Fitment Notes:

    The Sniper EFI Fabricated Manifold for 2011-2014 Ford Coyote 5.0L engines require the use of Bosch EV1 style fuel injectors. The Ford factory style fuel injectors will not work in conjunction with this manifold.

    Features:



    • 5 mm (13/64 in.) thick T6061 Sheet Aluminum construction, strong and durable for high horsepower and boosted conditions
    • 90 mm bore Throttle Body Opening
    • 100% TIG welded
    • Intake Kits include a throttle-body spacer and 3/8 in. Fuel rail kits with -8 AN fittings and crossover braided line capable of supporting 750+ horsepower
    • Equal runner lengths with tapered top on EFI intakes designed to increase velocity and more evenly distribute airflow to all 8 cylinders
    • Removable top for ease of inspection and modification
    • Welded seams inside and out for added strength and durability
    • Larger Intake plenum vs. standard Sniper EFI manifolds for max effort engines and boosted applications
    • Longer Intake runner lengths offering a wider RPM operating range of 2100-8200 RPM

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Custom Race Series Fabricated Intakes

      Holley Sniper Race Fabricated Intake Manifold Kits perform above and beyond the original Sniper EFI series of intakes while offering a very competitive alternative to higher-priced offerings in the marketplace. Each bolt-on manifold includes high-flow fuel rail kit, throttle-body spacer, and a removable top. Sniper Race intake manifolds are precision-machined for a perfect fit and welded for maximum structural integrity.

    Part TypeIntake Manifold
    Product LineHolley Sniper Race Fabricated Intake Manifolds
    BrandHOLLEY
    Package Height13.2
    Package Width15.3
    Package Length22.6
    Weight24.54 PG
    Part CategoryPerformance Parts
    UsageStreet/Hi-Performance
    Number Of CarbsNone, For Fuel Injection
    PositionN/A
    EmissionWith EGR
    Rpm Range2100-8200
    Cylinder Head TypeStandard
    Part FitmentSemi Universal
    Engine Make/SizeFord Small Block
    Vendor Part Number833151
    Package Qty1
    Package TypeEA
