Fitment

• 2009-2020 5.7L
• 2005-2010 6.1L
• 2011-2020 6.4L

Features

• Constructed of TIG-welded 3 mm (1/8 in.) thick T6061 aluminum with CNC 1 1/8 in. billet aluminum flanges for cylinder heads.
• Accepts 80 mm throttle body from 5.7, 6.1, 6.4 and 92 mm throttle body from 6.2 Hellcat engine.
• Tapered top intake runners will increase air velocity and distribute airflow to all cylinders more evenly
• Designed for stock Hemi EV14 USCAR fuel injectors
• MAP sensor provision located at the plenum rear
• 3/8 in. fuel rail kit with engraved Sniper logo
• 7 in. front and rear height
• 5.875 in. runner length
• (3) 1/8 in. NPT (1) 1/4 in.-19 NPT Vacuum Ports

Contents

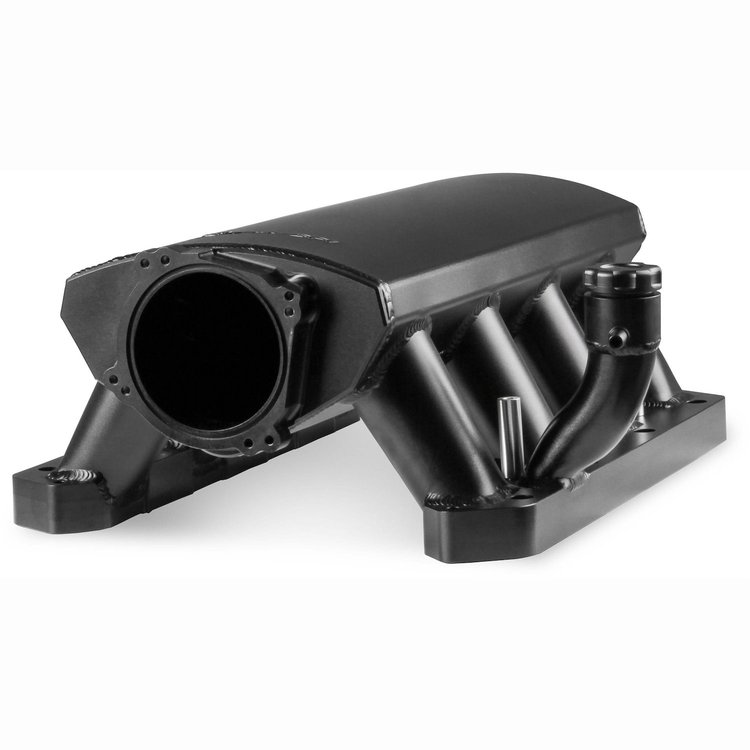

• Fabricated intake manifold
• Fuel rail kit
• Intake to throttle body o-ring
• Intake to cylinder head o-rings
• Mounting hardware

Note

• 6.4L engines may require an extension of the throttle body harness and IAT sensor harness to reach the new throttle body location

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
