BlackHeart Header-Back Race Exhaust System

Product Discontinued

HOOKER HEADERSPART NUMBER: 520-705013143R

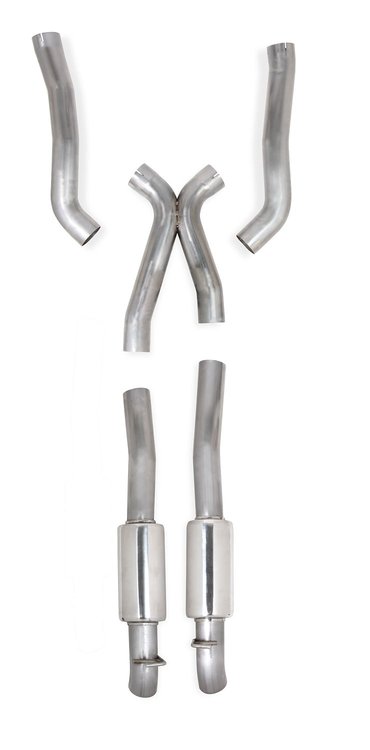

BlackHeart Header-Back Race Exhaust System

Name: BlackHeart Header-Back Race Exhaust System
Brand: HOOKER HEADERS
SKU: 520-705013143R
Price: 799.95 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Ford

BlackHeart Header-Back Turn Down Race Exhaust System

1979-1993 Ford Mustang

Coyote or LS Engine Swap

3 in. Tube Diameter

304 Stainless Steel

Features:

Designed with proper clearance for wide rear wheels/tires
Fits all transmissions that Hooker Blackheart 1979-1993 Mustang LS and Coyote engine swap mounts and crossmember are compatible to fit
Compatible with Blackheart engine swap transmission crossmembers
X-Pipe crossover will increase scavenging for maximum performance
Utilizes factory mounting locations
Tube geometry designed for maximum clearance
100% Hand-welded construction
Lightweight, 18-gauge, mandrel-bent, stainless steel construction
(4) 3 in. Band Clamps and (2) 3 in. Coupler Clamps included

Emissions:

Racing-Use-Only Vehicles are exclusively for competition use and not registered or used on the street
Not Legal In California

Part TypeExhaust System

BrandHOOKER HEADERS

Package Height16.0

Package Width19.5

Package Length52.5

Weight76.0 PG

Part CategoryPerformance Parts

Muffler Material304 stainless steel

Hardware IncludedYes

Tip IncludedNo

Tailpipe Diameter (In.)3

QuantitySold as a kit

Muffler IncludedYes

Muffler QuantityTwo

System StyleHeader-back

Muffler FinishNatural

Muffler ConfigurationSingle inlet/Single outlet

System Material304 stainless steel

Exit LocationSplit Rear

Exit TypeDual

Clamps IncludedYes

Inlet QuantityTwo

Intermediate Pipe Diameter3 in (76.2 mm)

Part FitmentSemi Universal

Catalytic Converter(S) IncludedNo

Vendor Part Number705013143RHKR

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
