The HPT-BAL-002 wideband kit adds CAN Bus digital messaging on top of the same standalone air-fuel ratio monitoring found in HP Tuners' analog Ballenger kits, letting the display controller communicate its readings as configurable CAN or OBDII messages instead of, or alongside, a simple analog voltage. PC software handles the message-structure programming directly, so no additional adapters or bench equipment are needed to set up the specific CAN messaging a tuning software or data system expects.

HP Tuners HPT-BAL-002 Features:

• Transmits air-fuel ratio data as fully configurable CAN Bus or OBDII messages using the included PC programming software.
• Reads air-fuel ratio from 9.0:1 to 16.0:1 with 0.1 resolution using an NTK production-grade sensor.
• Also outputs a standard 0 to 5 V analog signal for compatibility with gauges and data loggers that do not read CAN.
• Accepts 11 to 28 V input power, including 24 V systems, and includes a programmable CAN termination resistor.

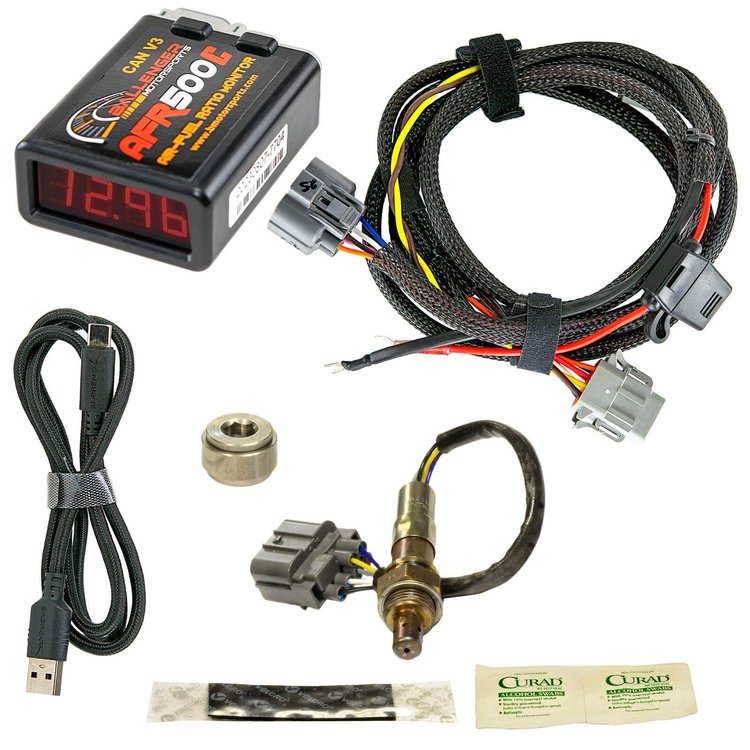

HP Tuners HPT-BAL-002 Kit Contents:

• AFR500CANv3 digital display controller.
• CAN flying lead and USB programming harness.
• 13 ft. wiring harness with sealed connections.
• NTK production-grade wideband sensor.
• Weld-in steel exhaust boss and plug.
• Installation, troubleshooting, and tuning manual with CAN-specific addendum.

A PC connected through the included USB programming harness is required to configure the CAN or OBDII message structure for the specific tuning software or data system in use.

Emissions Disclaimer

HP Tuners designs and manufactures software and hardware tools for vehicle diagnostics, scanning, logging, calibration, and data acquisition purposes. The authorized use of such tools is to bring a motor vehicle into emissions compliance and/or to maintain emissions compliance, as well as for use on competition/racing and other exempted vehicles. HP Tuners does not create or provide tunes or pre-made calibrations.

HP Tuners' Terms of Use, policies, and agreements mandate that users shall comply with all local, state, and federal laws. In using HP Tuners software and hardware tools, you are representing, warranting, and agreeing not to use, employ or allow any HP Tuners tools to operate as a defeat device or to violate emissions compliance in any manner whatsoever. You further represent warrant and agree that the HP Tuners tools shall only be used by manufacturers, calibration businesses, and professionals to develop emissions-compliant and/or exempted calibrations.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
