HPS Performance SSTC-63-71 Features:

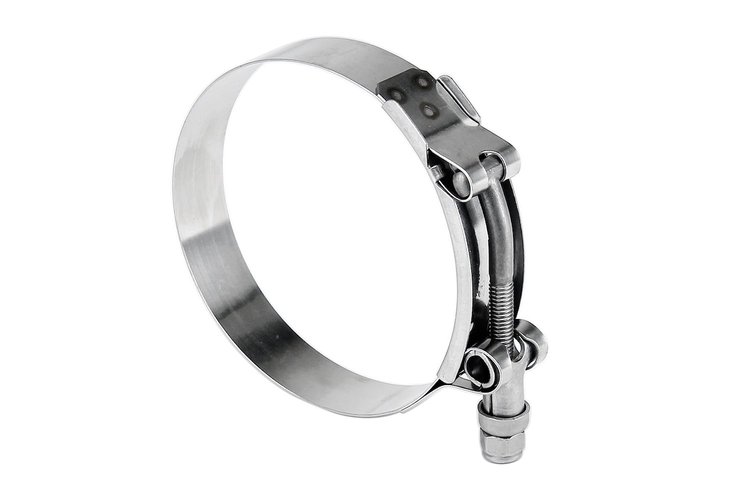

HPS 100% Stainless Steel T-Bolt Clamp with Floating Bridge 2.50 in.-2.80 in. (63mm-71mm) for 2.25 in.ch ID hose provides leak-proof connections in a wide variety of industrial, commercial, and military applications. HPS manufacture our clamps from 300 series stainless steel with rounded band edges to protect soft hose materials. HPS Stainless Steel T-Bolt Band Clamps provide high tensile strength, durability, and corrosion resistance. HPS Stainless Steel T Bolt Clamps are the perfect choice for medium and heavy-duty applications.HPS Stainless Steel T-Bolt Band Clamps are frequently installed on Coolant and Air-Intake Systems for Construction Vehicle, Truck, Aircraft, Marine and Bus Engines, Duct Systems, Baghouse Equipment, Irrigation Systems, Medical Equipment and Precleaners. Technical Specification: SAE #52. Effective Size Range: 2.50 in.-2.80 in. (63mm-71mm). 100% Stainless Steel Band, Bolt and Nut. Floating bridge and rolled edges to protect soft hoses. Superior welded construction. Meets or exceeds SAE Spec. J1508 for T-Bolt clamps. 3/4 in. Band Width. Max. Torque Spec 75 in. lbs. Quantity: 1

• SAE # 52. Meets or exceeds SAE Spec. J1508 for T-Bolt clamps
• Effective Diameter Range: 2.50 in.-2.80 in. (63mm-71mm)
• Floating bridge and rolled edges to protect soft hoses. 3/4 in. Band Width.
• Max. Torque Spec 75 in. lbs
• 100% Stainless Steel Band, Bolt and Nut. Superior welded construction
