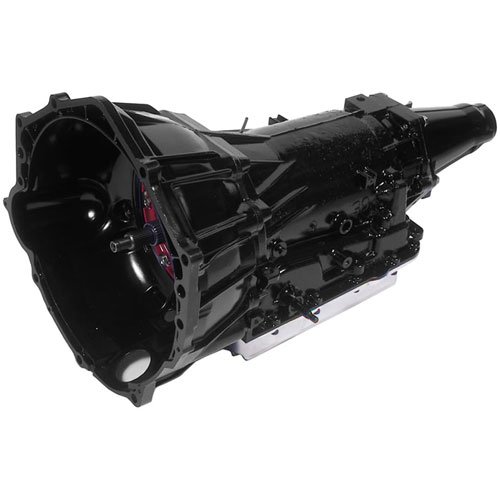

Street-Strip Transmission Assembly 1969-90 Chevy TH400
InfoVehicle Info Needed
HUGHES PERFORMANCEPART NUMBER: 512-34-2

Street-Strip Transmission Assembly 1969-90 Chevy TH400

$2,96999
Core Charge: $20000
Truck Freight
ShippingShips on 11/20/2026
Lowest PriceLowest Price Guarantee

Items You Need

Quick Shift Automatic Transmission Fluid [1-quart]

JEGS

Quick Shift Automatic Transmission Fluid [1-quart]

Part Number : 555-28070
$1099$12.99
You Save$2.00
Quick Shift Automatic Transmission Fluid [1-gallon]

JEGS

Quick Shift Automatic Transmission Fluid [1-gallon]

Part Number : 555-28071
$4499$51.99
You Save$7.00
Quick Shift Automatic Transmission Fluid [(3) 1-Gallon Jugs]

JEGS

Quick Shift Automatic Transmission Fluid [(3) 1-Gallon Jugs]

Part Number : 555-28072
$13497
Automatic Transmission Fluid High-Temp ATF

RED LINE OIL

Automatic Transmission Fluid High-Temp ATF

Part Number : 816-30204
$1879

GM
    Street-Strip Transmission Assembly
  • 1969-90 Chevy TH400
  • Full Manual Valve Body
  • Chevy Pattern

Hughes Performance Street-Strip Transmissions With Full Manual Valve Bodies have been designed for street performance and other applications where tire spinning shifts are desired. Hughes Performance Street-Strip Transmissions contain racing components which increase strength, reliability, and torque capacity. Hughes Performance Street-Strip Transmissions also feature a Hughes Performance Full Manual Valve Bodies which allow you to manually shift through the gears.

Show More

Installation -- All linkage, vacuum lines and kickdown mechanisms must be connected and properly adjusted for any automatic transmission to operate correctly. Hughes recommends a transmission cooler and deep aluminum oil pan, which has 2 to 4 quarts of extra fluid capacity, with any severe-duty, street/strip transmission. Made in the U.S.A.

Features

  • Perfect Transmissions for tiring spinning shifts
  • Hughes Performance precision engineering for superior performance
  • Full Manual Valve Bodies for manual control over all shifts
Part TypeAutomatic Transmission
Product LineHughes Performance Street-Strip Transmissions With Full Manual Valve Body
BrandHUGHES PERFORMANCE
Package Height20.0
Package Width21.0
Package Length29.0
Weight125.0 PG
Part CategoryPerformance Parts
Transmission Drive TypeRWD
Transmission BellhousingChevrolet
First Gear Ratio (Automatic Transmissions)2.48
Yoke StyleSlip On
Tailshaft Length4 in (101.6 mm)
Fluid Fill LocationCase
Transmission Tailhousing Length4.00
Transmission Electronic ControlN
Case MaterialAluminum
LockupNo
Transmission Speed3
Transmission Mfr.GM
Flexplate Shield Built InNo
Pan TypeStock
QuantitySold individually
Transmission Mfr. CodeTHM400
Dipstick IncludedNo
Valve Body StyleFull manual
Transmission Input Spline30
Trans-Brake IncludedNo
Transmission Low Gear Ratio2.48
Input Spline Quantity30 in (762 mm)
Transmission Output Spline32
Transmission Pan TypeOEM
Transmission Speedometer TypeMechanical
Transmission Shield Built InNo
Transmission LockupN
Safety RatingNot SFI Approved
Vendor Part Number34-2
Package Qty1
Package TypeEA
