General Motors

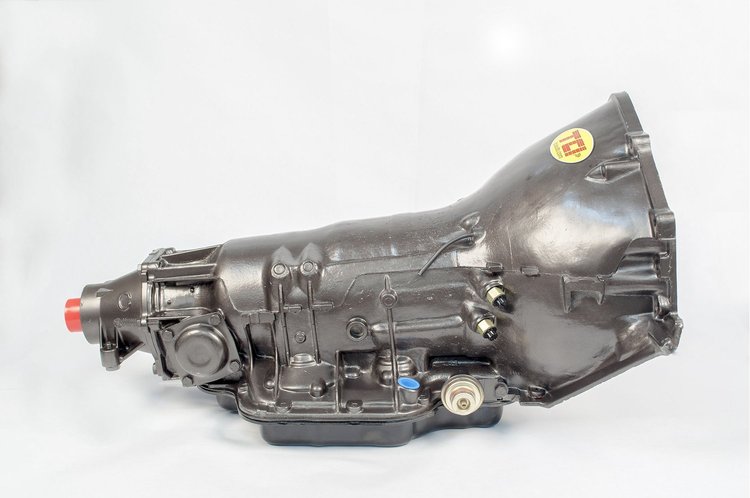

Drag Race Transmission
Chevy
  • TH400
  • All Chevy
  • Large Yoke
  • Reverse Shift Pattern
  • 4'' Tailshaft
  • Full Manual

    TCI 212000 Features:

    Designed for the extreme high performance street or all out race car, this transmission will give you consistent shifts as well as complete control over shift points. This drag race transmission offers a reverse shift pattern and requires no vacuum hookups or kickdown linkage. This means there are no external linkages to be purchased, which saves some expense. The increased line pressure provides a harder, quicker shift and eliminates the lag time between shifts produced by automatic shift transmissions.

    • Extreme performance clutches and nitrided steel plates for enhanced performance
    • High-performance power bands provide greater torque capacity and more positive shifts and band apply
    • Hardened sprag races increases durability & strength
    • Improved lubrication system increases fluid sent to planetaries and internals.
    • Able to handle up to 750 HP, depending on application

    TCI 212000 Note:

    • Competition transmission speedometer cable provisions are shipped sealed with a freeze plug. Removal of the freeze plug is required for speedometer cable housing installation
  • TCI Competition transmissions are triple tested so you can be confident you're getting a race ready performance transmission that is superior in both form and function.

    Features include:

    • Performance high gear clutches and bands.
    • No automatic shift features.
    • 2nd and 3rd ''quick shift'' (except Powerglide).
    • Heavy duty planetaries.
    • Special heat treated sprag and sprag races.
    • Improved lubrication system.
    • Painted transmission pan.
    • More torque and increased thrust capacity.
    • Blueprinted and dyno tested.

    Note: Speedometer drive gear and driven gear not included.
    Part TypeAutomatic Transmission
    Product LineTCI Competition Transmissions
    BrandTCI
    Package Height18.0
    Package Width21.25
    Package Length31.0
    Weight130.0 PG
    Part CategoryPerformance Parts
    Transmission Mfr.GM
    Flexplate Shield Built InNo
    Transmission Drive TypeRWD
    Pan TypeStock
    First Gear Ratio (Automatic Transmissions)2.48
    QuantitySold individually
    Transmission Mfr. CodeTH400
    Yoke StyleSlip On
    Dipstick IncludedNo
    Valve Body StyleFull manual
    Trans-Brake IncludedNo
    Tailshaft Length4 in (101.6 mm)
    Input Spline Quantity30 in (762 mm)
    Fluid Fill LocationCase
    Part FitmentSemi Universal
    Case MaterialAluminum
    Transmission Shield Built InNo
    Safety RatingNot SFI Approved
    LockupNo
    Vendor Part Number212000
    Package Qty1
    Package TypeEA
