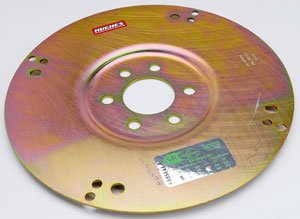

SFI Approved Extreme Series Flexplate 1991-97 GM Gen V/Gen VI 454

Vehicle Info Needed

HUGHES PERFORMANCEPART NUMBER: 512-HP4002X

SFI Approved Extreme Series Flexplate 1991-97 GM Gen V/Gen VI 454

Name: SFI Approved Extreme Series Flexplate 1991-97 GM Gen V/Gen VI 454
Brand: HUGHES PERFORMANCE
SKU: 512-HP4002X
Price: 215.02 USD
Availability: InStock

^$215⁰²

Ships on 11/13/2026

Lowest Price Guarantee

Items You Need

JEGS

Quick Shift Automatic Transmission Fluid [1-gallon]

Part Number : 555-28071

^$42⁷⁴$51.99

You Save$9.25

DORMAN PRODUCTS

18 In. Plastic Flex and Fill Funnel, 1 Qt. Bowl 9-736

Part Number : 326-9-736

^$6⁰⁷$20.65

You Save$14.58

DORMAN PRODUCTS

15 Qt. Plastic Drain Pan 95-1371

Part Number : 326-95-1371

^$20⁹⁹

JEGS

Quick Shift Automatic Transmission Fluid [1-quart]

Part Number : 555-28070

^$9³⁴$12.99

You Save$3.65

1991-97 GM Gen V & Gen VI 454 cid Engines
4mm Thick Center Plate
1 Piece Rear Main Seal
Externally Balanced
168 Tooth

Hughes Performance Flexplates are stronger, longer lasting replacements for your high performance needs. Hughes Performance Flexplates are precision engineered to withstand the punishment and shock delivered by modern high-horsepower, high-RPM engines. Hughes Performance Flexplates meet the need of street, strip, and off-road enthusiasts everywhere, delivering superior performance and longevity in any situation.

Features

Doubled welded for stronger joints
Superior metal to stock flexplates for superior strength and longevity
SFI and Non-SFI Applications to fit the needs of your vehicle's transmission

Part TypeFlexplate

Product LineHughes Performance Flexplates

BrandHUGHES PERFORMANCE

Package Height0.6

Package Width15.6

Package Length15.9

Weight8.8 PG

Part CategoryPerformance Parts

Flexplate Balance Weight (Lbs.)Y

Ring Gear Tooth Quantity168-tooth

Flexplate MaterialSteel

Flexplate Ring Gear Teeth168

Converter Mount Type3 PAD

Rear Main Seal Style1-piece

Flexplate Bolt Circle (In)10.75

Flexplate Diameter (In)14.13

QuantitySold individually

Safety RatingSFI 29.1

Engine BalanceExternal

Vendor Part NumberHP4002X

Package Qty1

Package TypeEA

Some parts are not legal for use in California or other states with similar laws / regulations
