ICON Vehicle Dynamics 27727EP Features:

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks with CDEV are 100% rebuildable and 100% revalveable.
• TECH NOTE: Also requires installation of IIC kit (Part # 23502) and CDEV front shocks (Part # 27821EP)
• TECH NOTE: Rear shocks require sway bar relocation kit (Part #22062) or sway bar link kit (Part #22070) to be used in conjunction with JT coil spacer (Part #22065) or JT coil spring (Part #22066)
• TECH NOTE: Only compatible with models equipped with 3.6L V6 gasoline engine
• Add-On Part: 27821EP - 20-UP JT/18-UP JL 2.5" FRONT 2.5 VS RR CDEV PAIR
• Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Service Parts: 257341 - 7/8 SHAFT 15.85 OAL, 11.00 TRAVEL
• Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
• Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
• Adjustable: Electronically
• Shaft Diameter: 0.875 in
• Damping Type: Oil
• Cylinder Color: Grey
• Cylinder Material: Aluminum
• External Reservoir: Yes
• Shaft Material: Chrome
• Bore Diameter: 2.25 in
• Gas Charged: Yes
• Upper Mount Type: Eyelet

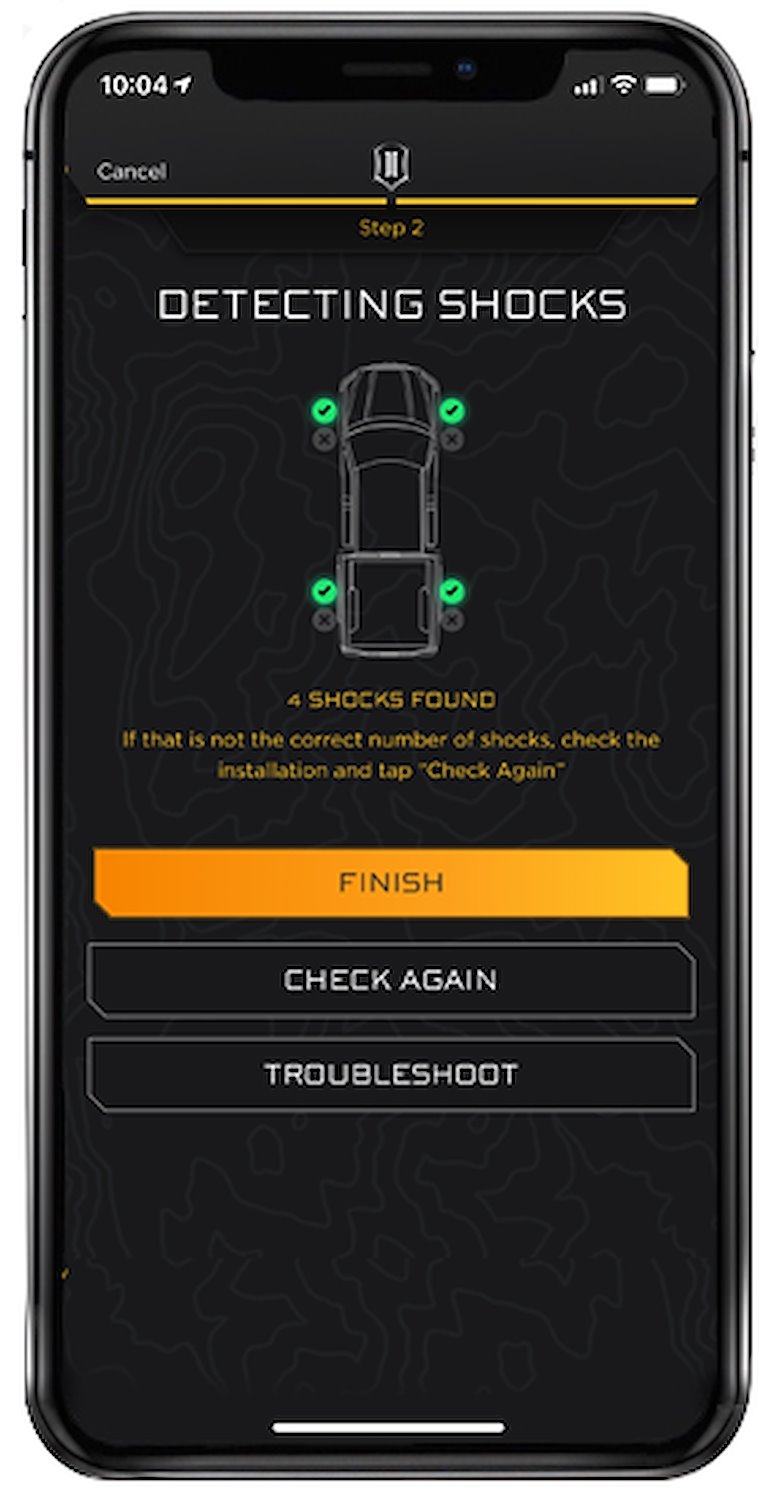

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with piggyback reservoir
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8” diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• Protective shin guards standard with every shock
• 100% Rebuildable
• 100% Revalveable

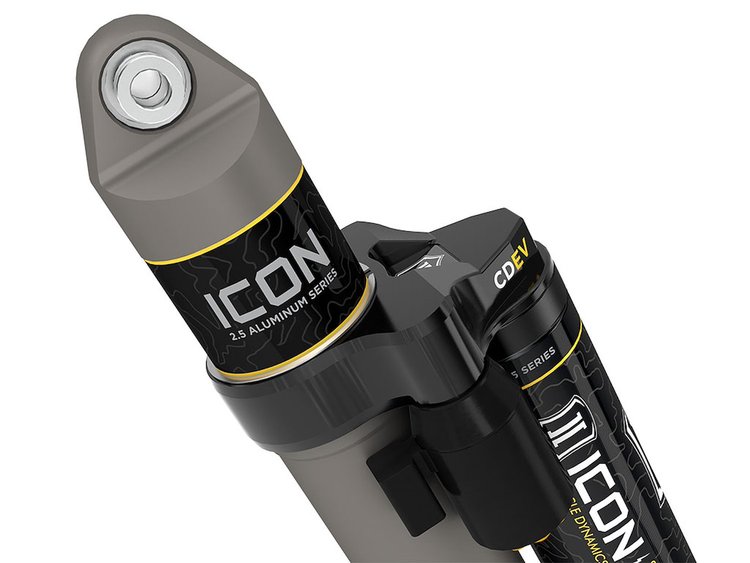

• 2020-UP JEEP GLADIATOR JT 1.5" LIFT REAR 2.5 VS PIGGYBACK CDEV SHOCK PAIR
