ICON Vehicle Dynamics 48601 Features:

The 2021-Up Ford Bronco EXP Series front shock absorbers by ICON Vehicle Dynamics combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Bronco’s factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package.
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.75” Backspace / 25mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Requires high clearance crash bars, ICON part number 42000. 37" tire packages require coilover bump stop spacers along with trimming and modifications)
• TECH NOTE: EXP Coilovers are sold individually. A quantity of 2 are required per vehicle.
• TECH NOTE: Recommend ICON High Clearance Crash Bar Kit, part number 42000, when running 35” tires
• TECH NOTE: When running 37” tires bump stop spacer kit part number 611082 is required and crash bar removal may also be required, but is not recommended
• TECH NOTE: Only compatible with 2021-UP Ford Broncos equipped with HOSS 1.0 Suspension Package
• TECH NOTE: Lift heights above 2” over stock may require aftermarket front upper control arms to maintain ideal front end alignment
• TECH NOTE: Not compatible with Bronco Raptor
• Add-On Part: 611082 - EXP 1" SHAFT BUMP EXTENSION
• Service Parts: 252010 - 2.5 IFP REBUILD KIT
• Material: Steel
• Shaft Diameter: 0.875 in
• Coil Over Springs Included: No
• Dust Shield: No
• Remote Reservoir: NO
• Adjustable Damping: NO
• Damping Type: Oil
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Requires high clearance crash bars, ICON part number 42000. 37" tire packages require trimming and modifications)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.75” Backspace / 25mm Offset
• Gas Charged: Yes
• Upper Mount Type: Stem
• Vehicle specific design for 2021-UP Ford Bronco with HOSS 1.0 Suspension Package
• Vehicle specific tuned for superior shock damping and control
• 2.5 Aluminum Series Shock with Internal Reservoir
• Adjustable ride heights from 1.5-3” of front lift over stock with the use of snap ring
• Utilizes factory coil and coil hardware
• Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
• One-piece, impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
• CNC machined 6061 aluminum components with a black anodized finish
• PTFE lined spherical bearing for extended longevity and minimal deflection
• High strength alloy CNC machined lower bar pin
• 100% Bolt-on - no cutting or welding necessary for installation
• Fully rebuildable and re-tunable

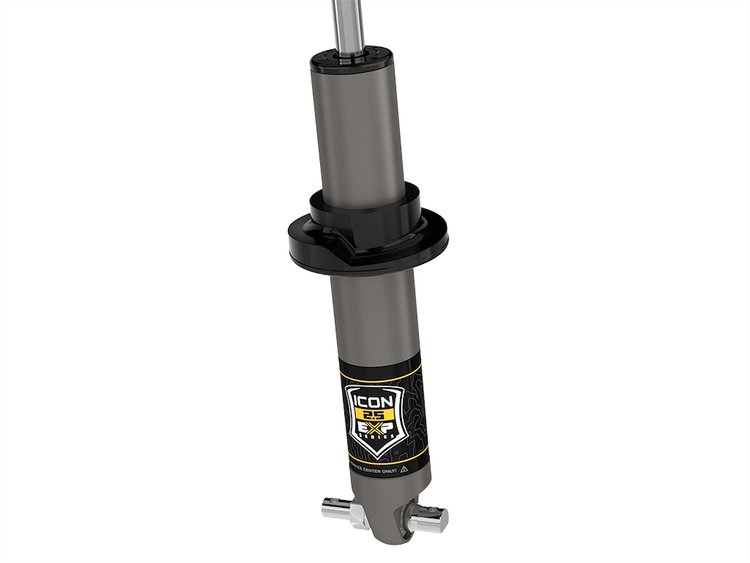

• 2021-UP FORD BRONCO HOSS 1.0 SUSPENSION PACKAGE 2.5 FRONT EXP COILOVER
