Vehicle Info NeededICON VEHICLE DYNAMICSPART NUMBER: 504-58620-700

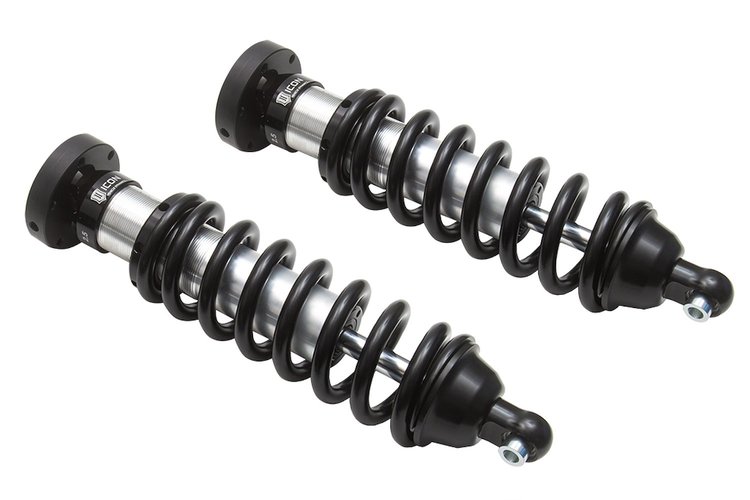

2000-2006 TUNDRA 2.5 VS INTERNAL RESERVOIR COILOVER KIT 700LB COILS
$1,72635
Ships on 09/09/2026
Lowest Price Guarantee- TUNDRA COILOVERS
- Title: 00-06 TUNDRA 2.5 VS IR COILOVER KIT 700LB
- Grade Type: Performance
- Spring Color: Black
- Spring Material: Steel
- Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
- Factory Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 8"-9" wide wheel with 5" backspace
- Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.
- Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
- Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
- Service Parts: 252010 - 2.5 IFP REBUILD KIT
- Service Parts: 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT
- Service Parts: 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL
- Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
- Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
- Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
- Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
- Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
- Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
- Material: Aluminum
- Material: Steel
- Shaft Diameter: 0.875 in
- Coil Over Springs Included: Yes
- Dust Shield: No
- Remote Reservoir: NO
- Adjustable Damping: NO
- Damping Type: Oil
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5” Backspace / 0mm Offset
- Gas Charged: Yes
- Upper Mount Type: Mounting Plate
- 2000-2006 TUNDRA 2.5 VS INTERNAL RESERVOIR COILOVER KIT 700LB COILS
Part TypeCoilover Shock Conversion Kit
BrandICON VEHICLE DYNAMICS
Package Height7.0
Package Width13.0
Package Length26.0
Weight45.0 PG
Vendor Part Number58620-700
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
