ICON Vehicle Dynamics 58671 Features:

The 2022-Up Toyota Tundra EXP Series front shock absorbers by ICON Vehicle Dynamics combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Tundra’s factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package.
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
• TECH NOTE: EXP Coilovers are sold individually. A quantity of 2 are required per vehicle.
• TECH NOTE: Lift heights above 2.25” require sway bar drop bracket kit part number 55154
• TECH NOTE: Lift heights above 2.25” over stock require aftermarket front UCAs to maintain proper alignment
• TECH NOTE: Tundras equipped with Load-leveling Rear Height Control Air Suspension may not sit level. Rear lift options for air equipped trucks coming soon!
• TECH NOTE: 2022 Tundra SR5 equipped with TRD Sport packages will have lift height range of .5-3.5” over stock
• TECH NOTE: Not compatible with Tundras equipped with Adaptive Variable Suspension (AVS)
• TECH NOTE: Not compatible with Tundra TRD Pro
• TECH NOTE: Not compatible with Tundras equipped with i-FORCE MAX hybrid engine
• Material: Aluminum
• Material: Steel
• Shaft Diameter: 0.875 in
• Coil Over Springs Included: No
• Dust Shield: No
• Remote Reservoir: NO
• Adjustable Damping: NO
• Damping Type: Oil
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
• Recommended Aftermarket Wheels: 17x8.5" with 5.75” Backspace / 25mm Offset
• Gas Charged: Yes
• Upper Mount Type: Stem
• Vehicle specific design for 2022-UP Toyota Tundra
• Vehicle specific tuned for superior shock damping and control
• 2.5 Aluminum Series Shock with Internal Reservoir
• Adjustable ride heights from 0-3” of front lift over stock with the use of snap ring
• Utilizes factory coil and coil hardware
• Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
• Impact extruded, hard anodized aluminum cylinder offers excellent corrosion resistance and consistent finish
• CNC machined 6061 aluminum components with a black anodized finish
• PTFE lined spherical bearing for extended longevity and minimal deflection
• Fully rebuildable and re-tunable

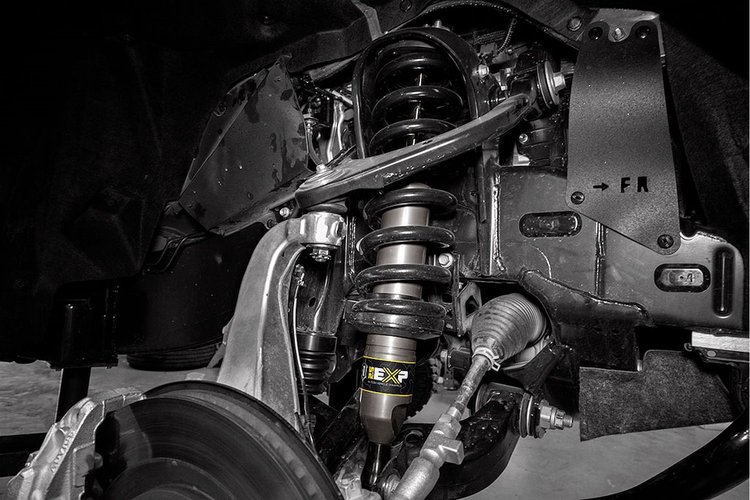

• 2022-UP TOYOTA TUNDRA FRONT EXP COILOVER
