Vehicle Info NeededICON VEHICLE DYNAMICSPART NUMBER: 504-58735-700

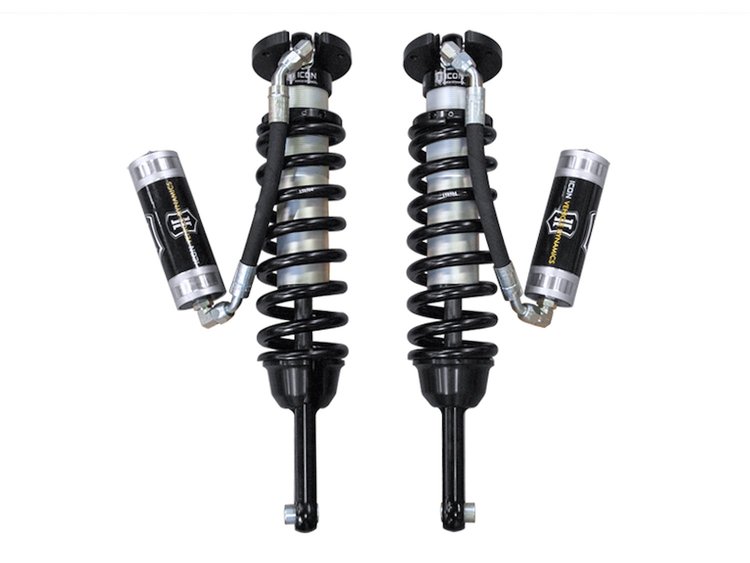

2005-UP TACOMA EXT TRAVEL 2.5 VS REMOTE RESERVOIR COILOVER KIT 700LB COILS
$2,09555
Ships on Sep 03, 2026
Lowest Price Guarantee- TACOMA COILOVERS
- Title: 05-UP TACOMA EXT TRAVEL 2.5 VS RR COILOVER KIT 700LB
- Grade Type: Performance
- Spring Color: Black
- Spring Material: Steel
- Material: Aluminum
- Material: Steel
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 with 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 18x9 with 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 20x9 with 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- TECH NOTE: Aftermarket front upper control arms required for installation
- TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.
- TECH NOTE: 2017-UP Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock
- Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
- Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
- Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
- Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
- Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
- Service Parts: 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT
- Service Parts: 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL
- Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
- Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
- Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
- Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
- Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
- Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
- Shaft Diameter: 0.875 in
- Coil Over Springs Included: Yes
- Dust Shield: No
- Remote Reservoir: Yes
- Adjustable Damping: NO
- Damping Type: Oil
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5” Backspace / 0mm Offset
- Spring Rate: 700 ppi
- Gas Charged: yes
- Upper Mount Type: Mounting Plate
- 2005-UP TACOMA EXT TRAVEL 2.5 VS REMOTE RESERVOIR COILOVER KIT 700LB COILS
Part TypeCoilover Shock Conversion Kit
BrandICON VEHICLE DYNAMICS
Package Height8.0
Package Width12.0
Package Length27.0
Weight55.0 PG
Vendor Part Number58735-700
Package Qty1
Package TypeEA
