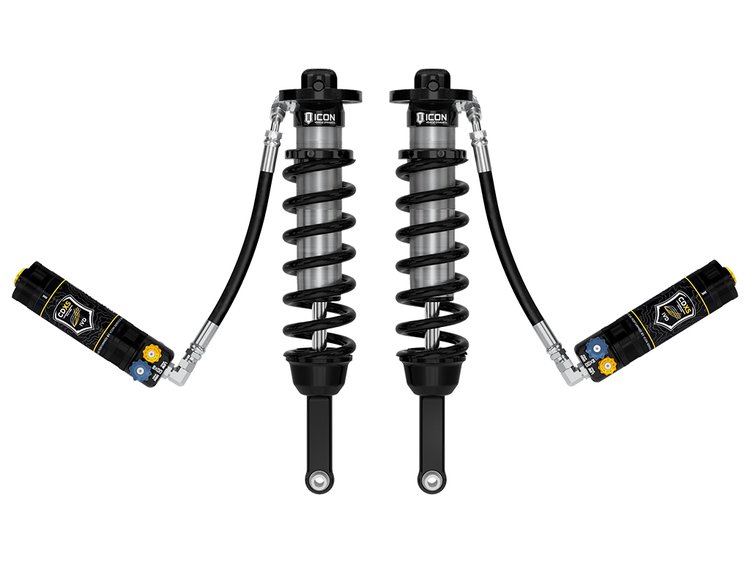

This V.S. 2.5 series coilover kit for the 2005-2023 Toyota Tacoma brings CDXS damping adjustment, 2.5 in. body diameter and 0.875 in. shaft diameter to the application. It is sold as a pair.

ICON ICNSUS58735X-700 Key Details:

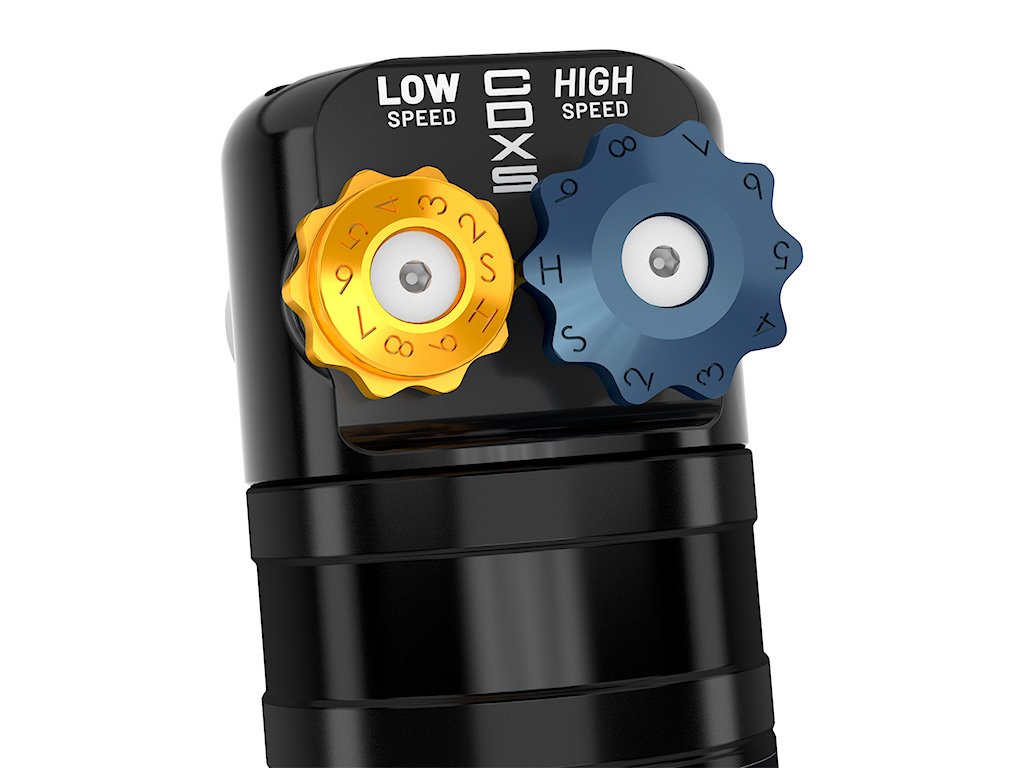

• The CDXS valve provides damping adjustment.
• Body diameter measures 2.5 in.
• Shaft diameter measures 0.875 in.
• Provides 5.16 in. of shaft travel.
• Extended length is 22.57 in.
• Compressed length is 17.42 in.
• Built with cadmium plated steel cylinder.
• Uses a remote reservoir.
• Uses digressive valving.
• Gas charged damper design.
• Upper mount type is mounting plate.
• Lower mount type is eyelet.

Compatibility Notes:

• Covers Toyota Tacoma (2005-2023), Toyota Hilux (2005-2023).
• These systems are to be used with aftermarket upper control arms only.
• 700lb/in spring rate only recommended for trucks with additional weight added to front end.
• Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle.
