ICON Vehicle Dynamics 58746 Features:

ICON Vehicle Dynamics has taken their already perfect performing coilover shocks and given it the heat dissipation and long lasting performance of a full blown race shock. All of this has been developed to bolt on and install with ease. They increase suspension travel and dramatically increase the capabilities of your FJ Cruiser or 4Runner's front suspension. These coilovers come complete with all the hardware necessary to complete the installation as well as a sway bar relocation bracket kit to adjust the location of the sway bar to clear the larger shock. These coil-over’s are meant to be installed with an aftermarket uniball upper control arm kit to ensure the proper amount of wheel travel and to prevent premature ball joint wear.
• Factory Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: 8.5" wide wheel with 4.75" backspace
• Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Service Parts: 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT
• Service Parts: 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL
• Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
• Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
• Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
• Shaft Diameter: 0.875 in
• Coil Over Springs Included: Yes
• Dust Shield: No
• Remote Reservoir: Yes
• Adjustable Damping: NO
• Damping Type: Oil
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5” Backspace / 0mm Offset
• Spring Rate: 650 ppi
• Gas Charged: yes
• Upper Mount Type: Mounting Plate
• Adjustable ride height from 0" - 3.5"
• Race shock piston with flutter stack compression valving
• Kit Includes Sway bar relocation brackets
• Kit also Includes Reservoir Mounting Brackets
• Cad-plated threaded body / Extreme Weather Plating Option Available
• Billet aluminum upper mount
• 5/8" PTFE-lined spherical bearing
• Completely re-buildable
• Hose Length Optimized for Increased Fluid Transfer
• Mounting Bracket Orients Reservoir for Optimum Tire Clearance
• External Reservoir Ensures Maximum Cooling
• Chrome-silicon spring
• 250 PSI nitrogen-charged internal reservoir

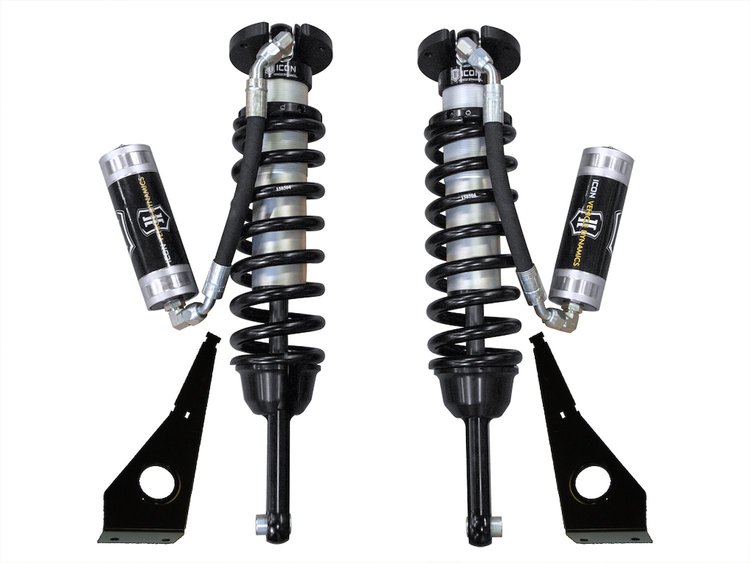

• 2010-2014 FJ CRUISER/2010-UP 4RUNNER 2.5 VS REMOTE RESERVOIR COILOVER KIT
