Vehicle Info NeededICON VEHICLE DYNAMICSPART NUMBER: 504-61700C

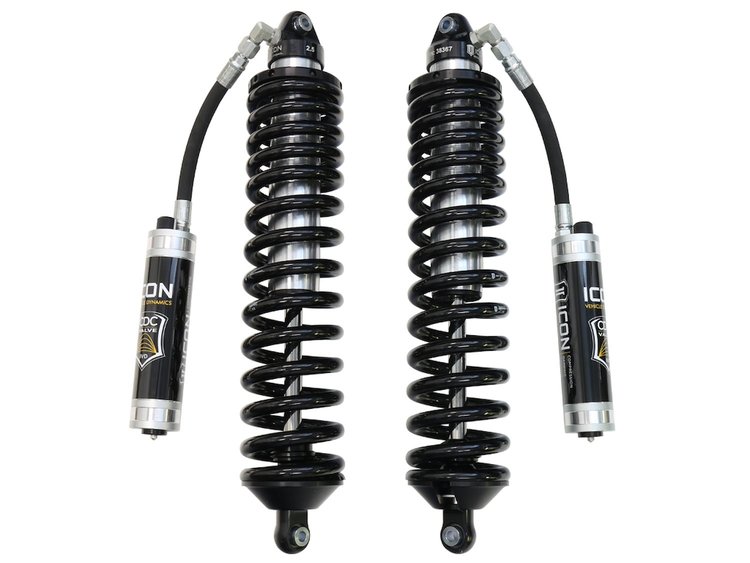

2008-2016 FSD 4WD 7-9 in. LIFT 2.5 VS REMOTE RESERVOIR CDCV COILOVER KIT
$2,18395
Ships Tomorrow
Lowest Price Guarantee- SUPER DUTY COILOVERS
- Title: 08-16 FSD 4WD 7-9" 2.5 VS RR CDCV COILOVER KIT
- Grade Type: Performance
- Spring Color: Black
- Spring Material: Steel
- Material: Aluminum
- Material: Steel
- Factory Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 8.5" wide wheel with 5" backspace
- Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- ICON Coilover Conversion Hoops Part # 61950L & 61950R required for installation
- Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
- Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
- Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
- Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
- Service Parts: 257340 - 7/8 SHAFT 14.25 OAL, 10.00 TRAVEL
- Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
- Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
- Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
- Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
- Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
- Service Parts: 191015 - 10" FINNED RESI UPGRADE KIT
- Shaft Diameter: 0.875 in
- Coil Over Springs Included: Yes
- Dust Shield: No
- Remote Reservoir: Yes
- Adjustable Damping: Yes
- Damping Type: Oil
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.25” Backspace / 6mm Offset
- Gas Charged: yes
- Upper Mount Type: Eyelet
- 2008-2016 FSD 4WD 7-9" LIFT 2.5 VS REMOTE RESERVOIR CDCV COILOVER KIT
Part TypeCoilover Shock Conversion Kit
BrandICON VEHICLE DYNAMICS
Package Height7.0
Package Width13.0
Package Length31.0
Weight84.0 PG
Vendor Part Number61700C
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
