Vehicle Info NeededICON VEHICLE DYNAMICSPART NUMBER: 504-91110

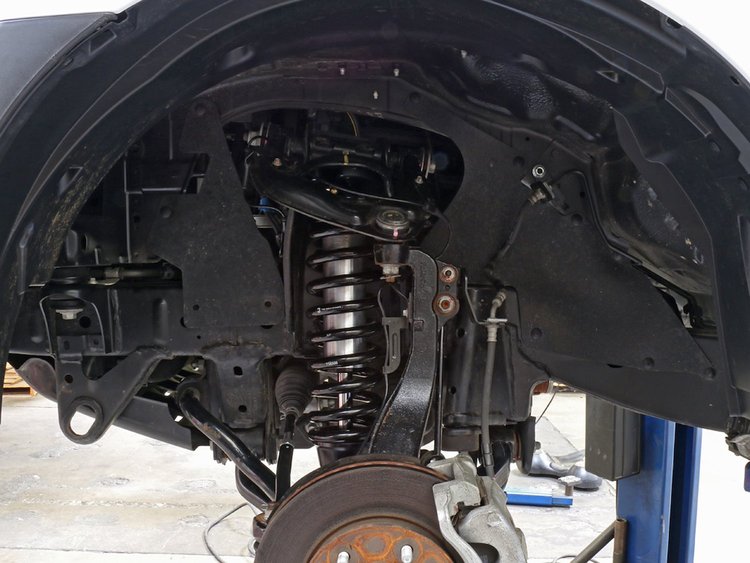

2011-UP RANGER T6 1-3 in. LIFT 2.5 VS INTERNAL RESERVOIR COILOVER KIT
$1,51835
Ships on 11/04/2026
Lowest Price Guarantee- RANGER T6 COILOVERS
- Title: 11-UP RANGER T6 1-3" 2.5 VS IR COILOVER KIT
- Grade Type: Performance
- Spring Color: Black
- Spring Material: Steel
- Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 8" Wide Wheel With 5" Backspace
- Recommended Aftermarket Tires: 32 x 11.00" Tall Tires (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
- Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
- Service Parts: 252010 - 2.5 IFP REBUILD KIT
- Service Parts: 257338 - 7/8 SHAFT 12.25 OAL, 8.00 TRAVEL
- Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
- Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
- Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
- Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
- Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
- Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
- Material: Steel
- Adjustable: No
- Shaft Diameter: 0.875 in
- Coil Over Springs Included: Yes
- Dust Shield: No
- Remote Reservoir: NO
- Adjustable Damping: NO
- Damping Type: Oil
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 32 x 11.00" Tall Tires (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Recommended Aftermarket Wheels: 17x8.5" w/ 5” Backspace
- Gas Charged: Yes
- Upper Mount Type: MOUNT PLATE
- 2011-UP RANGER T6 1-3" LIFT 2.5 VS INTERNAL RESERVOIR COILOVER KIT
Part TypeCoilover Shock Conversion Kit
BrandICON VEHICLE DYNAMICS
Package Height7.0
Package Width13.0
Package Length26.0
Weight45.0 PG
Part CategoryPerformance Parts
QuantitySold as a Kit
Part FitmentDirect Fit
Vendor Part NumberICNSUS91110
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
