ICON Vehicle Dynamics 91250 Features:

ICON's Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable
• Factory Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 with 5.75" Backspace / 25mm Offset
• Recommended Aftermarket Tires: 285/70/R17 (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• TECH NOTE: 2021-UP ford Ranger XLT or Lariat models equipped with Tremor package have front lift height range of 0-2.5" over stock.
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
• Service Parts: 252010 - 2.5 IFP REBUILD KIT
• Service Parts: 257338 - 7/8 SHAFT 12.25 OAL, 8.00 TRAVEL
• Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
• Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
• Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
• Shaft Diameter: 0.875 in
• Coil Over Springs Included: Yes
• Dust Shield: No
• Remote Reservoir: NO
• Adjustable Damping: NO
• Damping Type: Oil
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 285/70/R17 (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 w/ 5.75" Backspace / 25mm Offset
• Gas Charged: Yes
• Upper Mount Type: Mounting Plate
• Adjustable coilovers yield 0-3.5” of front lift height
• Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• Superior low speed control reduces body roll and increases on-road stability
• High quality ICON-engineered Eibach coil springs are guaranteed for life against sagging or breakage
• Corrosion resistant CAD plated shock body with 7/8" shaft
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
• Bolt-in design makes for an easy install into OEM shock location

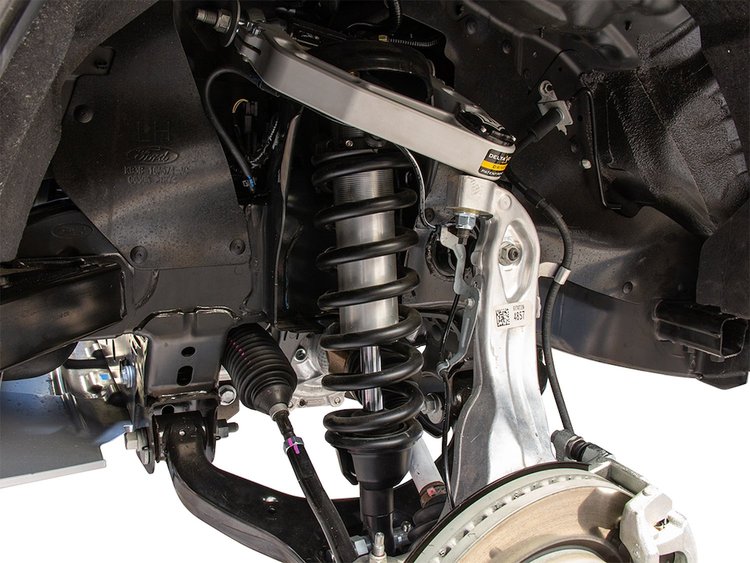

• 2019-UP FORD RANGER 4WD 2.5 VS INTERNAL RESERVOIR COILOVER KIT
