ICON Vehicle Dynamics K53126 Features:

The ICON Vehicle Dynamics S2 Secondary Shock System redefines the off-road capability of the 2016-UP Toyota Tacoma by allowing for the installation of a secondary shock to an existing ICON coilover setup. The addition of a secondary 2.5 Aluminum Series shock means rougher terrain and larger off-road obstacles can be overcome with confidence as the damping ability of the vehicle’s suspension is effectively doubled. As opposed to overly complicated and expensive long travel kits, the ICON S2 System is an affordable upgrade that drastically increases off-road performance, is easy to install, and has a modular design that allows 2016-UP Toyota Tacoma owners to upgrade in steps or all at once.
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.00” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.00” Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #17: THESE ARE STAND-ALONE KITS AND ARE NOT TO BE USED IN CONJUNCTION WITH ANY OTHER AFTERMARKET KITS
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #59: WELDING REQUIRED - LOWER CONTROL ARM
• APPLICATION NOTE #95: DOES NOT WORK WITH TRD BIG BRAKE KIT
• APPLICATION NOTE #117: NOT RECOMMENDED WITH REMOTE RESERVOIR COILOVER
• Ships in multiple boxes
• Add-On Part: 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
• Adjustable: No
• Shaft Diameter: 0.875 in
• Damping Type: Oil
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5” Backspace / 0mm Offset
• Cylinder Color: Silver
• Cylinder Material: Aluminum
• Shaft Material: Chrome
• Cylinder Diameter: 2.5 in
• Gas Charged: Yes
• Upper Mount Type: Eyelet
• SHOCK MOUNTS INCLUDED: Yes
• Shocks Included: Yes
• Drastically improves vehicle damping ability off-road
• Increased vehicle stability on-road
• Utilizes factory lower control arms
• Maintains OE track width
• Vehicle-specific tuned secondary shocks provide increased damping and oil volume
• CDC Valve technology allows for quick and easy compression damping adjustment
• Shocks are fully rebuildable and revalveable
• 2.5 Aluminum Series secondary shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Mostly bolt-on design makes for straightforward install

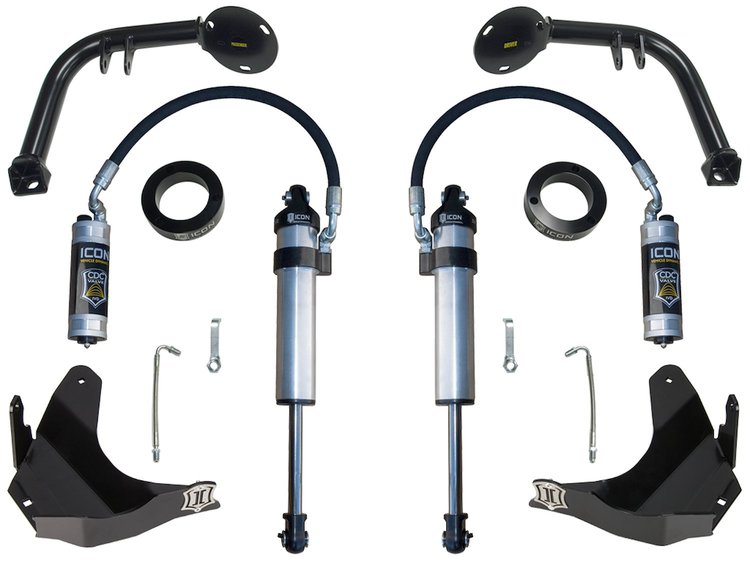

• 2016-UP TOYOTA TACOMA S2 STAGE 2 UPGRADE SYSTEM
