Alternator and Power Steering Pump Bracket Kit GM LS Truck Engine
InfoVehicle Info Needed
ICT BILLETPART NUMBER: 335-551498LS0WP3

Alternator and Power Steering Pump Bracket Kit GM LS Truck Engine

$32500
ShippingShips on 09/15/2026
Lowest PriceLowest Price Guarantee

Alternator / Power Steering Bracket Kits

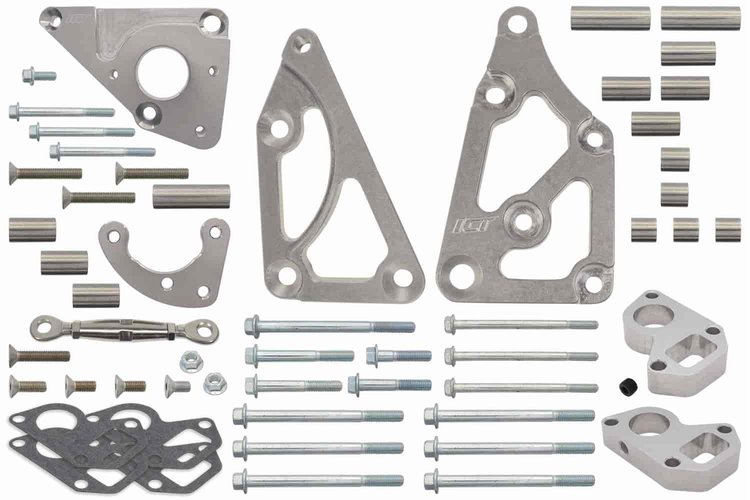

Alternator / Power Steering Pump Bracket Kit
  • GM LS Truck Engine
  • Billet Aluminum
  • Includes:
    • (1) 105 amp Alternator Relocation Bracket Kit w/Turnbuckle Tensioner
    • (1) GM LS1 Camaro Power Steering Pump Bracket Kit

      LS Crank Spacing Guide

      551498LS0WP3 Fitment Notes:

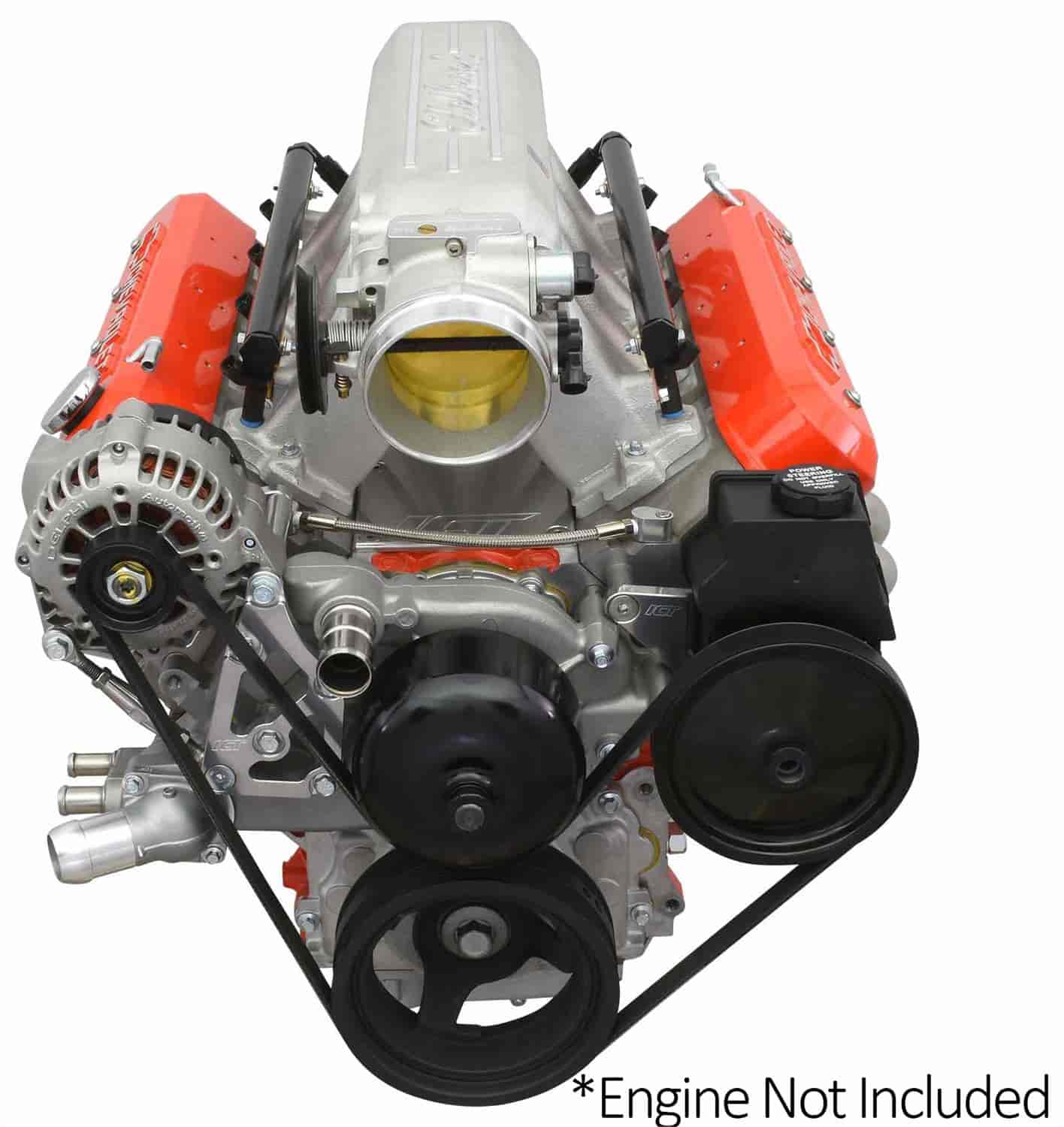

      • Relocates the Alternator to the Passenger Side and Mounts an LS1 Camaro Power Steering pump to the Driver Side Cylinder Head
      • Truck/SUV (or LS3/L99 Camaro) Needs Crank Pulley (Part Number BAL300)
      • Will Not Fit Corvette/CTSV, SS, G8 or 2010-15 Camaro Large Bolt Pattern Alternators, 145 Amp, or 160 Amp GM LS Truck Alternators
      • Fits GM LS1 Camaro Water Pump
      • Can be Used with Low Mount 4-Rib A/C Compressor on Passenger Side (335-551137-LS74-3)
      • Works with GM LS3 Throttle Body Adapter (335-551781) When Using GM LS3 Camaro Intake and Throttle Body
    • Part TypeAccessory Drive Belt Kit
    BrandICT BILLET
    Package Height3.5
    Package Width6.5
    Package Length9.5
    Weight5.535 PG
    Part CategoryPerformance Parts
    Hardware IncludedYes
    Crankshaft Pulley IncludedNo
    QuantitySold as a kit
    Mounting Hardware IncludedYes
    Air Conditioning Bracket IncludedNo
    Power Steering Brackets IncludedYes
    Power Steering Pulley IncludedNo
    Alternator Pulley IncludedNo
    Alternator Bracket IncludedYes
    Part FitmentSemi Universal
    Bracket FinishNatural
    Bracket MaterialBillet aluminum
    Vendor Part Number551498LS0WP-3
    Package Qty1
    Package TypeEA
