Vehicle Info NeededICT BILLETPART NUMBER: 335-551569LS0-3

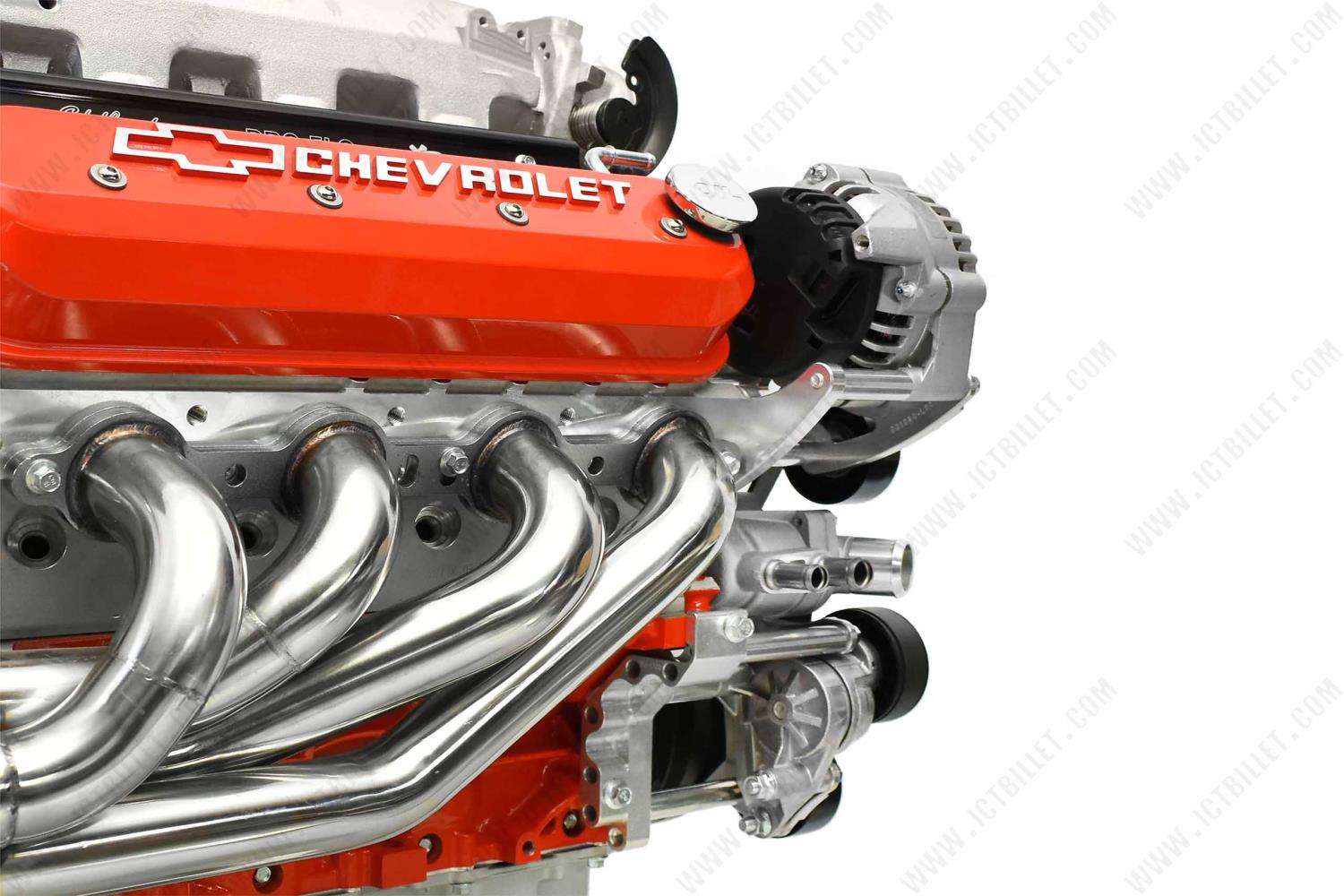

LS Alternator Relocation and LS1 Power Steering Pump Bracket Kit
$34100
Ships on 09/14/2026
Lowest Price GuaranteeAlternator / Power Steering Bracket Kits

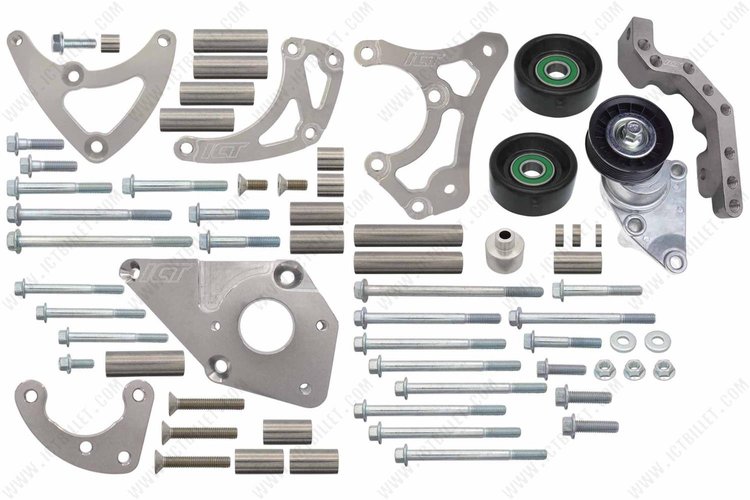

LS Alternator / Power Steering Bracket Kit LS Truck Style Crank Pulley High Mount Alternator Requires LS1 Camaro Power Steering Pump Aerospace-Grade Billet Aluminum Includes: Brackets, Idler Pulley, Tensioner, and Mounting Hardware
ICT Billet 551569LS0-3 Fitment Notes:
- All LS series engines are compatible
- Truck/SUV (or LS3/L99 Camaro) crank pulley (BAL300)
- Power steering pump and pulley from a 1998-2002 Chevy Camaro LS1 Z28 or SS (ICT PUL200 & PUM200) are used
- Alternator (ICT ALT300) will not fit Corvette/CTSV or 2010-up Chevy Camaro large bolt pattern alternators
- If needing to extend your alternator harness connection, use ICT WEALT30-36 (4-pin) or WEALT40-36 (2-pin) (sold separately)
- Uses a 6-groove 83 in. belt length (sold separately)
Part TypeAccessory Drive Belt Kit
BrandICT BILLET
Package Height4.75
Package Width12.4
Package Length12.5
Weight10.9 PG
Part CategoryPerformance Parts
Hardware IncludedYes
Alternator Brackets IncludedYes
Idler Brackets IncludedYes
Belt Groove Quantity6
Power Steering Bracket IncludedYes
QuantitySold as a kit
Idler/Tensioner IncludedYes
Alternator Mounting PositionHigh-Mount
Part FitmentSemi Universal
Bracket FinishRaw
Bracket MaterialBillet aluminum
Package Qty1
Package TypeEA
