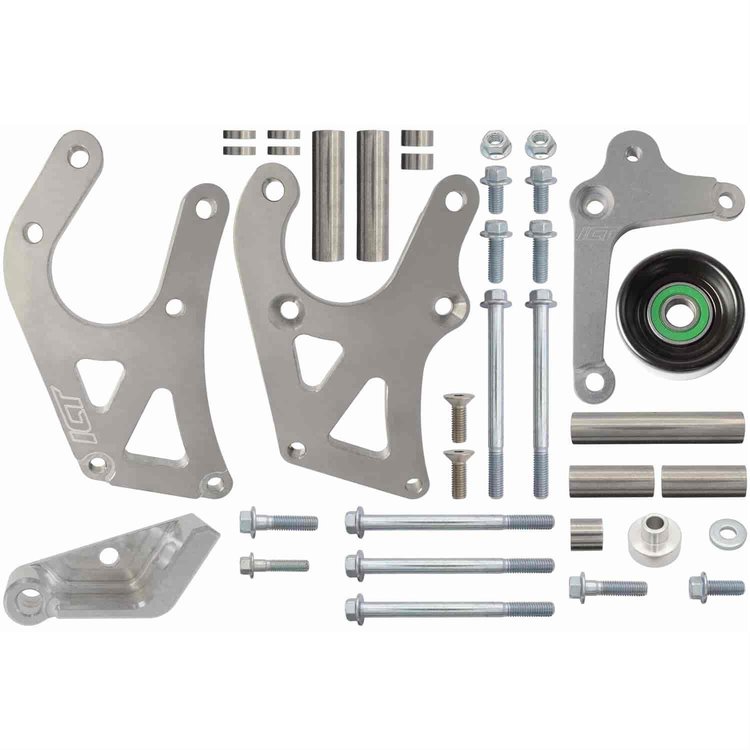

LS Alternator and Power Steering Pump Bracket Kit
InfoVehicle Info Needed
ICT BILLETPART NUMBER: 335-551778LS0-3

LS Alternator and Power Steering Pump Bracket Kit

$24699
1 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Alternator / Power Steering Bracket Kits

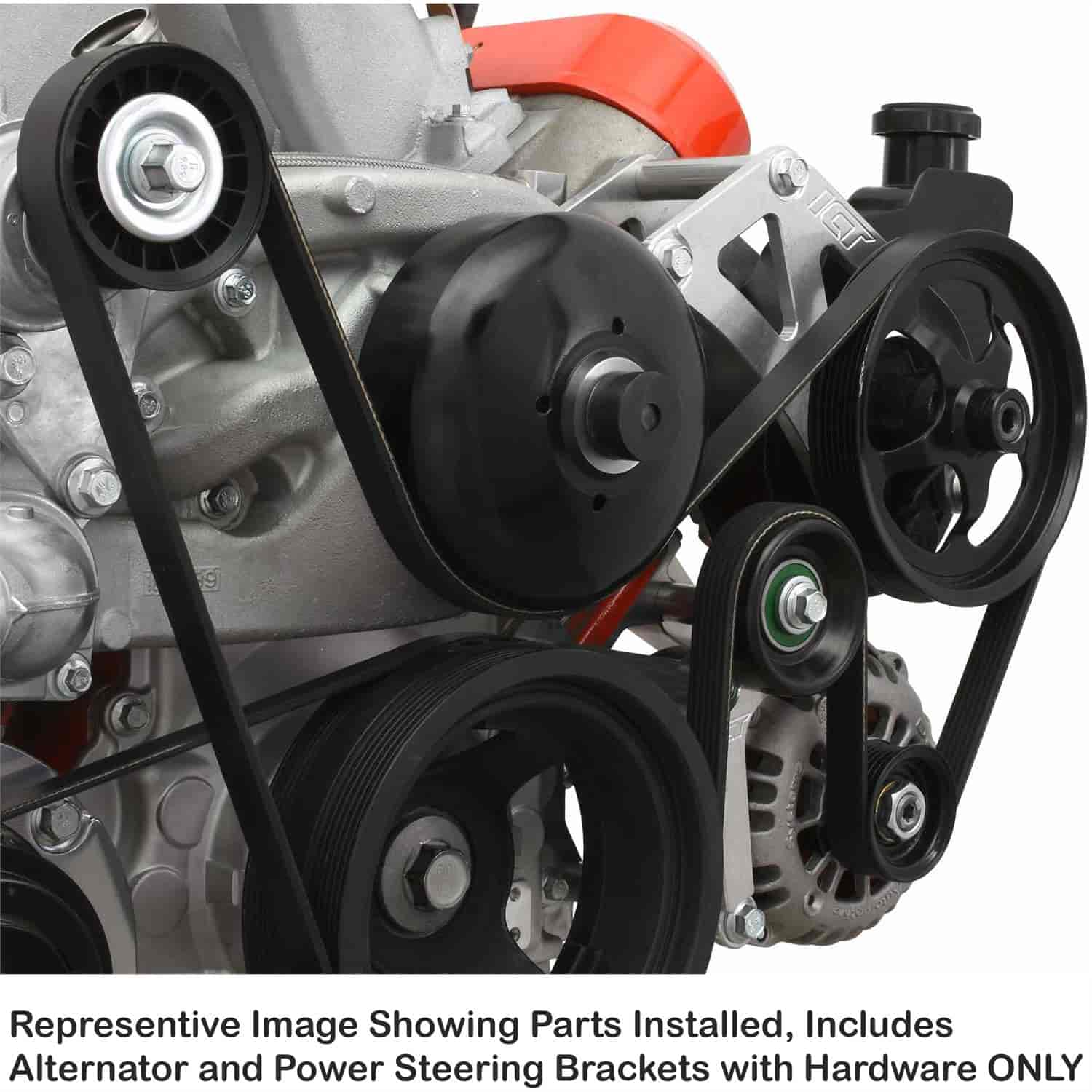

LS Alternator and Power Steering Bracket Kit
  • LS Truck or 5th Gen Camaro Crank Pulley
  • Truck Style Saginaw Type 1 Pump
  • Billet Aluminum
  • Includes: Bracket, Idler Pulley, and Mounting Hardware

    LS Crank Spacing Guide

    Fitment Notes:

    • Requires LS Truck/SUV (or LS3/L99 Camaro) crank pulley
    • Requires LS Truck/SUV Saginaw Type 1 power steering pump
    • Will NOT fit large bolt pattern alternators from Corvette, CTSV, G8, or 2010-up Camaro (unless using ICT bracket #335-551905. Fits all other LS alternators (145 amp or larger alternators do not have the provision for the rear bracket)
    • On truck engine blocks with only 1 mounting hole in the block, a second mounting hole will be required to drill and tap for 10 mm-1.5 bolt using template #335-551445. This part of the block is non-critical, away from the cylinders, oiling, and water jackets.
    • Belt when using the factory tensioner 465-K060755
    • Alternator wiring extension may be needed
    • Part TypeAccessory Drive Component Mount
    BrandICT BILLET
    Package Height3.7
    Package Width6.4
    Package Length9.2
    Weight4.76 PG
    Part CategoryPerformance Parts
    Hardware IncludedYes
    Alternator Brackets IncludedYes
    Crankshaft Pulley IncludedNo
    QuantitySold as a kit
    Idler/Tensioner IncludedYes
    Alternator Mounting PositionDriver side lower mount
    Power Steering Brackets IncludedYes
    Air Conditioning Pulley IncludedNo
    Power Steering Pulley IncludedNo
    Alternator Pulley IncludedNo
    Part FitmentSemi Universal
    Bracket FinishNatural
    Bracket MaterialBillet aluminum
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
