Breakdown of Included Items

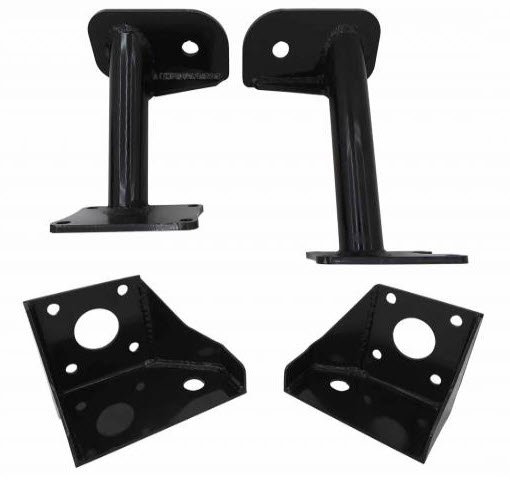

ICT Billet 551849-LMB Engine Mount Conversion Swap Kit:

• Compatible w/GM LS4 engines found in select GM vehicles:
  • 2005-2008 Pontiac Grand Prix GXP
  • 2006-2007 Chevrolet Monte Carlo SS
  • 2006-2009 Chevrolet Impala SS
  • 2008-2009 Buick LaCrosse Super
• Moves transmission 2 in. rearward from the factory location
  • Requires the use of axle spacers
• Uses the factory transmission mount nut
• Rated for up to 1500 HP

ICT Billet 551849-LMB Engine Mount Conversion Swap Kit Required Components (Each Sold Separately):

• ICT Billet Alternator & Tensioner Bracket Accessory Drive 551844-LS4
• GM LS4 water pump assembly 89018039
• GM LS4 thermostat 12600178
• GM LS4 radiator cap 15293434
• GM LS4 balancer 12635650
• GM LS4 Idlers 12596977,12569736, and 19252589
• GM LS4 A/C compressor 19418180
• GM Power steering pump 19369077
• GM Power steering pump pulley 12597211
• GM Power steering reservoir 88964568
• GM Power steering reservoir cap 15267531
• GM Power steering reservoir hose 15898529
• Moroso oil pan 20138
• Moroso oil pickup tube 24052
• SLC Grazziano transaxle to LS engine adapter plate
• Lamborghini Gallardo manual pedal box 401721140R
• E-Gear removal block 086311681
