38060 Handheld Digital Wideband Air/Fuel Ratio Meter and Datalogger [Single Wideband O2]
InfoVehicle Info Needed
INNOVATE MOTORSPORTSPART NUMBER: 540-38060

38060 Handheld Digital Wideband Air/Fuel Ratio Meter and Datalogger [Single Wideband O2]

$55399
ShippingShips on 11/24/2026
Lowest PriceLowest Price Guarantee

Handheld Digital Wideband Air/Fuel Ratio Meter and Datalogger
Handheld Digital Wideband Air/Fuel Ratio Meter and Datalogger
  • Single Wideband O2

    Innovate Motorsports 38060 Features:

    • 100 pct. Digital Wideband Air/Fuel Ratio Technology
    • Built-In RPM Converter [Direct Freq. or w/Opt. Inductive Clamp]
    • Large High-Contrast Graphics LCD
    • Log Directly To SD Card
    • OBDII Scan Tool-Read/Clear DTCs and Log Up to 16 Channels
    • Patented DirectDigital Wideband Sensor Control
    • Playback Log Data On Screen And/Or w/Powerful LogWorks Software

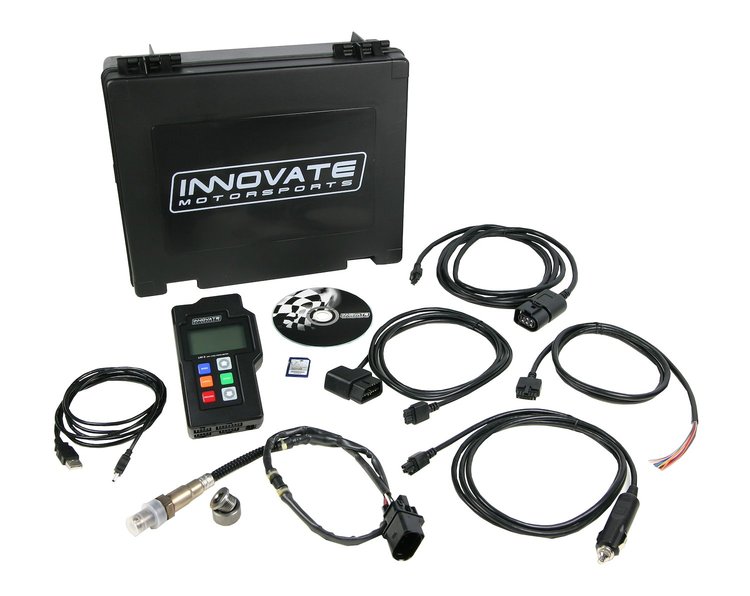

    Innovate Motorsports 38060 Includes:

    • LM-2 Meter
    • Bosch LSU4.9 O2 Sensor
    • 8 ft sensor cable
    • Cigarette-lighter power adapter
    • Analog in/out cable
    • ODB-II/CAN interface cable
    • SD memory card
    • USB cable
    • 1 in. bung and plug
    • Carrying Case
    • Instruction manual
  • Wideband AFR Gauge With Dataloging Capability

    The LM-2 combines an air/fuel ratio meter, a full-function 32-channel datalogger, and powerful software to deliver a complete tuning workshop for less than the cost of one dyno day. Whether you have a piggy-back fuel controller, race carb, aftermarket ECU, ODB-II tuning software, or a flash/chip programmer, an LM-2 is the tool you need to dial in maximum HP. The meter's digital signal processing technology provides data on exactly how rich or lean an engine is running at any load. The LM-2's self-calibrating circuitry also compensates for changes in temperature, altitude, and sensor condition.

    Show More

    The LM-2 also features two fully programmable linear analog outputs to connect to analog gauges, dyno computers, ECUs, piggyback controllers, and other devices with analog inputs. Analog output 1 comes setup from the factory ready for narrowband simulation; analog output 2 is configured as 0 volt = 7.35 AFR and 5 volts = 22.39 AFR. With the provided LM Programmer software these analog outputs may also be configured by the user.

    Features:

    • Wideband O2 Compatible with ALL fuel types
    • Single or Dual Channel Version Available
    • OBD-II Scan tool- read/clear DTCs and log up to 16 channels of CAN OBD-II Data
    • Log directly to SD card (included)
    • Playback log data on screen and/or with powerful LogWorks software (included)
    • Large high-contrast graphics LCD
    • Built-in RPM converter (direct frequency or with optional inductive clamp)
    • 4 fully-differential analog inputs
    • 2 configurable linear analog outputs
    • Positive lock connectors for all connections
    • Innovate MTS serial IN and OUT
    • USB connection to your PC
    Part TypeGauge
    Product LineInnovate Motorsports LM-2 Air/Fuel Meter
    BrandINNOVATE MOTORSPORTS
    Package Height5.0
    Package Width11.0
    Package Length14.0
    Weight6.0 PG
    Part CategoryPerformance Parts
    Part FitmentUniversal
    Vendor Part Number38060
    Package Qty1
    Package TypeEA
