Vehicle Info NeededLM-2 Digital Air/Fuel Ratio Meter Basic Kit
Ships Today
Lowest Price Guarantee- LM-2 Digital Air/Fuel Ratio Meter
- Basic Kit
- Single Wideband O2
- OBD-II Cable Required for OBD-II Features

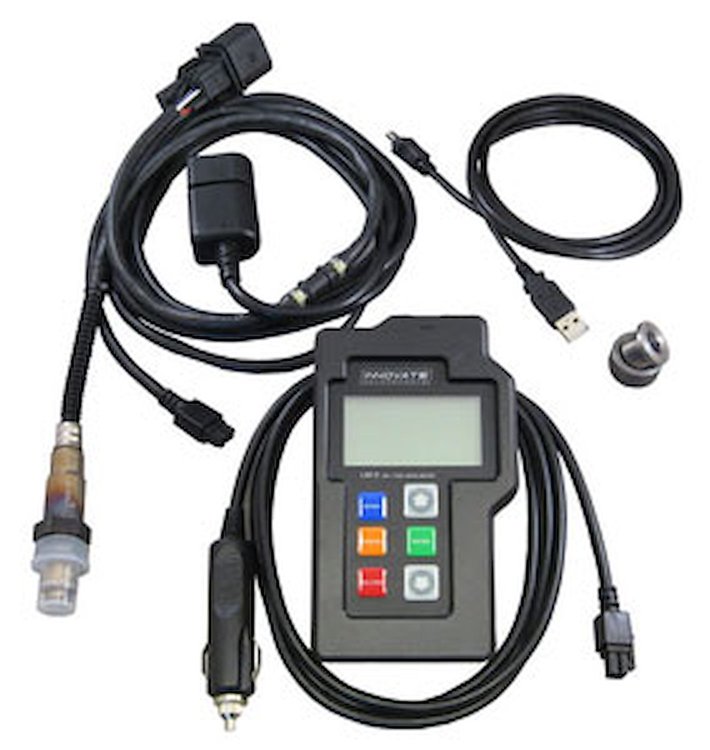

The LM-2 "Basic" Kit (Single Wideband O2) includes the LM-2 meter, Bosch wide-band oxygen sensor, 8 ft sensor cable, cigarette-lighter power adapter, USB cable for PC connection, weld-in bung and plug, LogWorks software CD, and quick-start guide.
*Note: The LM-2 "Basic" Kit out of the box only includes accessories to display your Air/Fuel Ratio either on the meter and/or on your PC. To log RPM, or to Output the wideband signal to an external device you'll need the LM-2 Analog IN/OUT Cable optional accessory. For OBD-II features you'll need the LM-2 OBD-II Cable optional accessory. To record internally to your LM-2 you'll need the SD Card optional accessory. This unit also comes in a cardboard box, the black hardcase is an optional accessory.
Wideband AFR Gauge With Dataloging Capability
The LM-2 combines an air/fuel ratio meter, a full-function 32-channel datalogger, and powerful software to deliver a complete tuning workshop for less than the cost of one dyno day. Whether you have a piggy-back fuel controller, race carb, aftermarket ECU, ODB-II tuning software, or a flash/chip programmer, an LM-2 is the tool you need to dial in maximum HP. The meter's digital signal processing technology provides data on exactly how rich or lean an engine is running at any load. The LM-2's self-calibrating circuitry also compensates for changes in temperature, altitude, and sensor condition.
Show More
The LM-2 also features two fully programmable linear analog outputs to connect to analog gauges, dyno computers, ECUs, piggyback controllers, and other devices with analog inputs. Analog output 1 comes setup from the factory ready for narrowband simulation; analog output 2 is configured as 0 volt = 7.35 AFR and 5 volts = 22.39 AFR. With the provided LM Programmer software these analog outputs may also be configured by the user.
Features:
- Wideband O2 Compatible with ALL fuel types
- Single or Dual Channel Version Available
- OBD-II Scan tool- read/clear DTCs and log up to 16 channels of CAN OBD-II Data
- Log directly to SD card (included)
- Playback log data on screen and/or with powerful LogWorks software (included)
- Large high-contrast graphics LCD
- Built-in RPM converter (direct frequency or with optional inductive clamp)
- 4 fully-differential analog inputs
- 2 configurable linear analog outputs
- Positive lock connectors for all connections
- Innovate MTS serial IN and OUT
- USB connection to your PC
