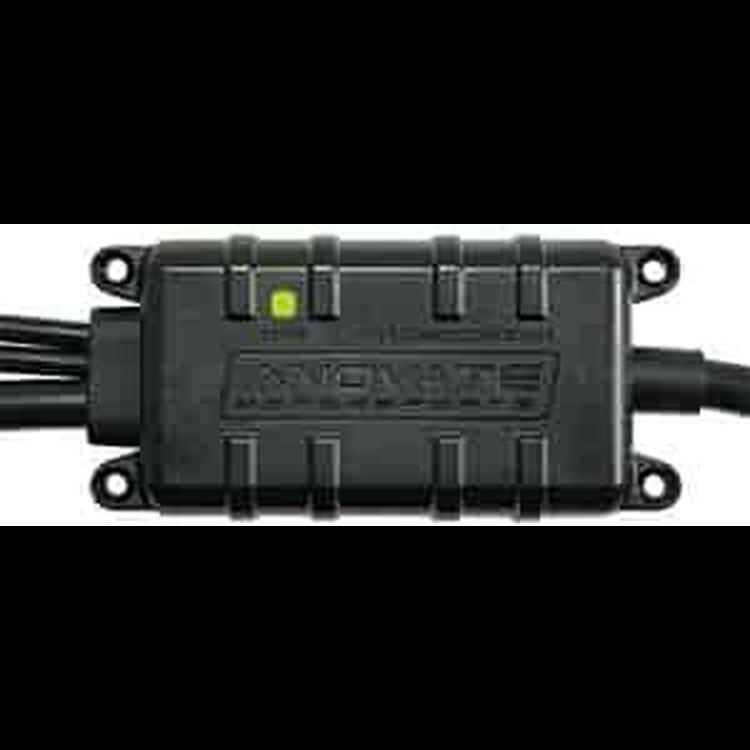

LC-2 Digital Wideband O2 Controller Ideal for Dynamometers, Data Acquisition Systems, Standalone ECUs Includes:
Items You Need
- LC-2 Digital Wideband O2 Controller
- Ideal for Dynamometers, Data Acquisition Systems, Standalone ECUs
Includes: - Digital Input/Output
- (2) Full-Programmable Analog Outputs
Specifications
Power
Operating Voltage 9.8V to 16V DC Input Current, O² heater initial warm-up 2.0A nominal, 3A max Input Current, O² normal operation 0.8A nominal, 1.1A max Environmental
Operating ambient temperature 0° to 140° F (-17.78° to 60° C) Storage ambient temperature -40° to 185° F (-40° to 85° C) Water resistance Splash resistant, non-submersible Sensors
Compatible Types Bosch LSU4.2, LSU4.9 Bosch Heater Control Digital PID via pump-cell impedance Measurements Lambda .61 to Free Air Air/Fuel Ratio 7.35 to Free Air (gasoline), Fuel Type Programmable O² 0-20.9% Accuracy For Lambda Accurate to +/- .007 (.1 AFR) Response Time
Free Air to Lambda < 100 mS ( < 25 mS typical) Inputs Serial 1, Innovate MTS Compatible Outputs Analog 2, 0-5VDC, 10 bit resolution, programmable
Serial 1, Innovate MTS Compatible Communication Serial MTS (Innovate Modular Tuning System) compatible
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Innovate Motorsports LC-2 Digital Wideband O2 Controller builds upon the legacy of the LC-1 by adding simplicity and leading edge technology and is the only 100% digital wideband air/fuel ratio technology on the market. The LC-2's patented award-winning DirectDigital signal processing technology provides data on exactly how rich or lean an engine is running and the self-calibrating circuitry compensates for changes in temperature, altitude, and sensor condition. The LC-2 includes a digital input/output, 2 full-programmable analog outputs, and is ideal for applications such as dynamometers, data acquisition systems, standalone ECUs, and gauges. The LC-2 can also be daisy-chained for cost-effective individual cylinder monitoring, and is fully compatible with Modular Tuning System (MTS).
Show More
Features:
- Patented DirectDigital Wideband Technology
- Wideband O2 Compatible with ALL fuel types
- Ability to calibrate O2 sensor for maximum accuracy
- Integrated dual-color status LED (Green/Red)
- Two configurable linear 0-5v analog outputs
- Optional sensor cable lengths available: 3ft, 8ft (Included), and 18ft
- Positive lock connectors for all connections
- Innovate MTS serial in/out
- Serial connection to your PC
- Real-time display data on screen and/or with powerful LogWorks software
