Product Discontinued
INNOVATE MOTORSPORTSPART NUMBER: 540-3910

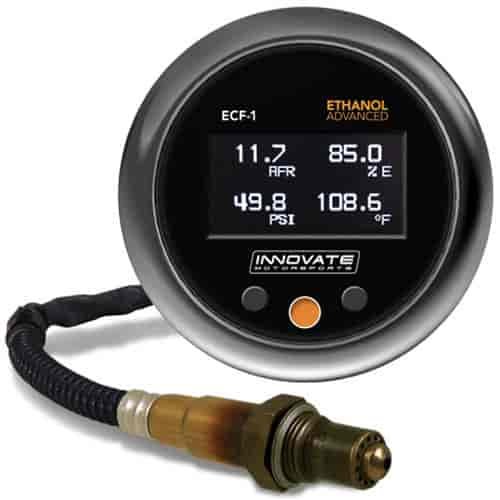

ECF-1 (FUEL) Ethanol Content & Air/Fuel Ratio Gauge 2-1/16" Diameter
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
ECF-1 (FUEL)
- ECF-1 (FUEL) Ethanol Content & Air/Fuel Ratio Gauge
- 2-1/16" Diameter
- 0-145 psi (10 Bar) Fuel Pressure Sensor
- Without Ethanol Sensor
Configurable Analog Outputs - Ethanol Content: 0v = 0%, 5v = 100%
- Fuel Temp: 0v = -40 °F, 5v = 257 °F (-40-125°C)
- Fuel Press: 0v = 0 PSI, 5v = 145.04 PSI (0-10 BAR)
- Wideband Air/Fuel Ratio: 0v = 7.35, 5v = 22.39 AFR (0.50-1.52 LambdaKit Includes:
- Gauge (Black Faceplate, Black Bezel)
- Silver Bezel & White Faceplate
- Fuel Pressure Sensor
- Fuel Line Fitting (3/8" M to 3/8" F w/1/8" NPT Side Port
- O2 Sensor
- Bung
Innovate Motorsports Digital Ethanol Advanced Gauges are designed to allow you to monitor and capture metrics when operating a vehicle containing ethanol content fuel. These stylish, four-in-one Digital Ethanol Advanced Gauges combine an award-winning, patented DirectDigital O2 Sensor Control technology with application specific sensors, an OLED display, and a sophisticated ethanol sensor that measures both fuel content and temperature.
Show More
Features:
- OLED user configurable display (one, two, or four channel viewing modes):
Ethanol %, Fuel Pressure, Fuel Temperature, Air/Fuel ratio
°F or °C, AFR or Lambda, PSI, kPa, or BAR
On screen error reporting for ethanol content sensor and wideband O2 - Warning indicator LED for low fuel pressure (user programmable)
- Includes interchangeable faceplates and bezels: Black and silver bezel, black and white faceplates
- No PC required for configuration
- Bosch LSU 4.9 wideband O2 sensor
- The only 100% digital wideband air/fuel ratio technology!
- Wideband O² Compatible with several fuel types (Leaded, Unleaded, Diesel, E85 & more)
- Ability to calibrate O² sensor for maximum accuracy
- Innovate MTS serial in/out (for use with other Innovate & 3rd party MTS enabled devices to add additional logging channels)
Part TypeGauge
Product LineInnovate Motorsports Digital Ethanol Advanced Gauges
BrandINNOVATE MOTORSPORTS
Package Height2.0
Package Width7.0
Package Length10.0
Weight3.5 PG
Part CategoryPerformance Parts
Part FitmentUniversal
Vendor Part Number3910
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
