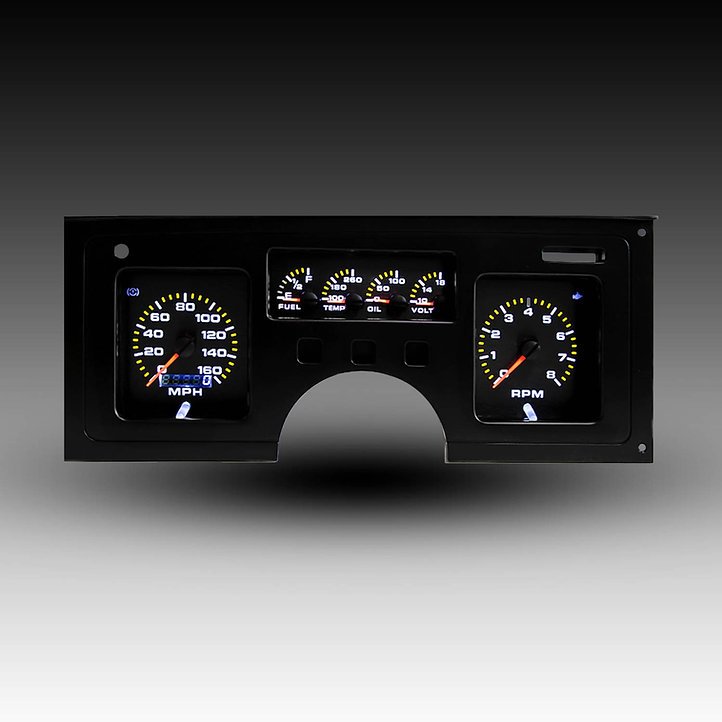

Intellitronix AP2003-S9020 Analog Gauge Panel Features:

• Features Speedometer, Tachometer for 8-6-4-cylinder, Fuel Gauge, Voltmeter, Oil Pressure Gauge, Water Temperature Gauge, and Clock.
• Speedometer reads up to 160 MPH with one-button calibration for 8-6-4-cylinder engines, including odometer, trip meter, high-speed recall, 0-60 time, and ¼ mile elapsed time.
• Voltmeter measures high and low voltage in the range of 10.0 to 18.0 volts.
• Oil Pressure Gauge reads from 0-100 psi, sending unit included.
• Tachometer reads from 0 to 8000 in 100 RPM increments.
• Water Temperature gauge reads from 100-260°F, sending unit included.
• Fuel gauge is user programmable for 0-30 and 0-90 ohms range sending units.
• Clock displays standard hours and minutes.
• Includes turn signal indicators, high beam indicator, and parking brake.
• Comes with a factory lifetime warranty, all necessary sending units, clear plexiglass, hardware, and instructions.

Intellitronix AP2003-S9020 Analog Gauge Panel Notes:

• When installed the gauge cluster may disable the cruise control system
• Bezel Not included
• All required sending and sensor unites are included
