Breakdown of Included Items

Features:

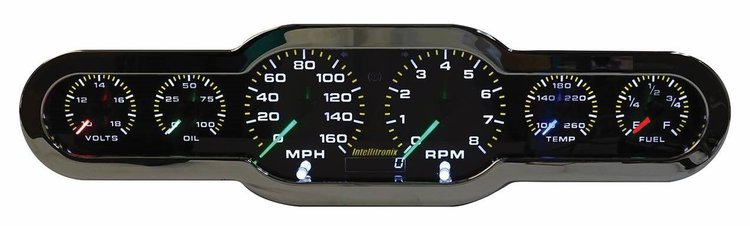

• 6 analog gauges: speedometer, tachometer, water temperature, oil pressure, voltmeter, and fuel level
• High beam, turn signal and clock indicators
• Automatic nighttime dimming
• Works with any mechanical or electronic transmission
• Works with 8, 6 and 4 cylinder engines
• Includes all necessary sending units, clear acrylic glass, hardware and complete instructions
• Dimensions: 17 in. L x 4 3/4 (.750) in. H x 2 3/4 (.750) in. W

Gauge Specifications:

• Speedometer
  • Reads up to 160 MPH
  • Odometer and trip meter
  • One button calibration
  • Includes speed sending unit (GM/Mopar/VW/Universal)
  • 0-60 time, 1/4 mile elapsed time and high-speed recall
  • Needle color: Starts at Green, as speed increases, needle changes to Yellow, then moves through Orange and then to Red at max
• Tachometer
  • 0-8,000 RPM (100 RPM increments)
  • Needle color: Starts at Green, as RPM's increase, needle changes to Yellow, then moves through Orange and then to Red at max
• Water Temperature
  • 100-260 degrees F
  • Includes water temperature sender
  • Needle color: Lowest temperature starts at Blue, as temperature increases, needle changes to Green, then to Red at max
• Oil Pressure
  • 0-100 PSI
  • Includes oil pressure sender
  • Needle color: Lowest temperature starts at Red, as pressure increases, needle changes to Yellow, then to Green at max
• Voltmeter
  • 10-18 V
  • No sending unit required
  • Needle color: Starts at Red, as volts increase, needle changes to Orange, then moves to Green and then to Red again at max
• Fuel Level
  • Reads empty to full in 1/4 increments
  • Programable to work with Ford, GM, Chrysler, VDO and aftermarket 240-33 ohm fuel senders, reads 0-99%
  • Needle colors: Full tank is Green, as fuel decreases, needle changes to Yellow, then moves through Orange and goes to Red at empty
