Breakdown of Included Items

Features:

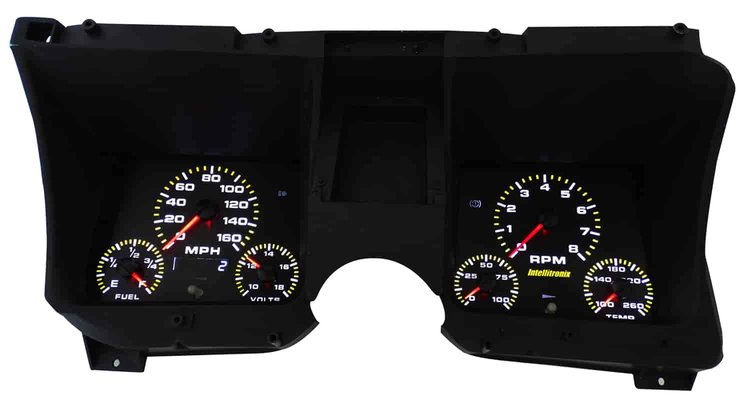

• Includes speedometer, tachometer, fuel level, voltmeter, oil pressure and water temperature
• Turn signal and high beam indicators
• Automatic nighttime dimming
• Works with mechanical or electronic transmissions
• The tachometer will work with 8, 6, or 4 cylinder engines
• Clear acrylic glass
• All necessary sending units and hardware
• Complete installation instructions

Note: Gauge bezel not included.

Gauge Specifications:

• Speedometer
  • Reads up to 160 MPH
  • Odometer and trip meter
  • One button calibration
  • 0-60 time, 1/4 mile elapsed time and high-speed recall
  • Includes speed sending unit
• Tachometer
  • 0-8,000 RPM (100 RPM increments)
• Water Temperature
  • 100-260 degree F
  • Includes water temperature sender
• Oil Pressure
  • 0-100 PSI
  • Includes oil pressure sender
• Voltmeter
  • 10-18 V
  • No sending unit required
• Fuel Level
  • Reads from empty to full in 1% increments
  • Programmable to Ford, GM, Chrysler, VDO and aftermarket 240-33 ohm senders
