Parts Breakdown

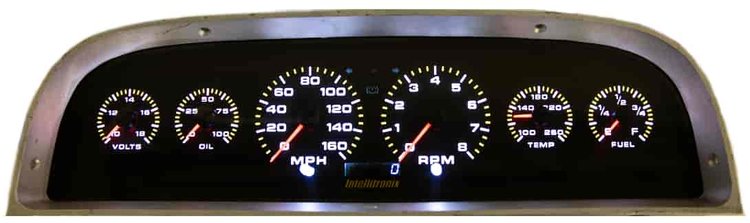

Features:

• Includes (7) analog gauges: speedometer, tachometer, water temperature, oil pressure, voltmeter, fuel level, and clock
• High beam, turn signal and clock indicators
• Automatic nighttime dimming
• Works with any mechanical or electronic transmission
• Works with 8, 6 and 4 cylinder engines
• Includes all necessary sending units, clear acrylic glass, hardware and complete instructions
• 18-gauge wiring

Gauge Specifications:

Speedometer
• Reads up to 160 MPH
• Odometer and trip meter
• One button calibration
• 0-60 time, 1/4 mile elapsed time and high-speed recall
Tachometer
• 0-8,000 RPM (100 RPM increments)
Water Temperature
• 100-260 degrees F
Oil Pressure
• 0-100 PSI
Voltmeter
• 10-18 V
Fuel Level
• Programable to work with Ford, GM, Chrysler, VDO and aftermarket 240-33 ohm fuel senders, reads 0-99%
Clock
• Displays standard hours and minutes
