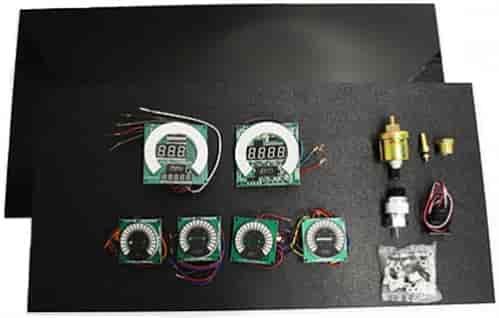

These six white LED bargraph gauges make up a universal Create-A-Dash kit for building a custom instrument panel. The kit reads speed, RPM, oil pressure, voltage, water temperature and fuel level and comes with its sending units.

Intellitronix BG10003W LED Bargraph Gauge Kit Features:

• 4 in. x 4 in. speedometer, MPH or KPH
• 4 in. x 4 in. tachometer
• 2 in. x 2 in. oil pressure gauge reads 0-80 PSI, sender included
• 2 in. x 2 in. voltmeter reads 12-16 V, no sender required
• 2 in. x 2 in. water temperature gauge reads 160-240 F with S8013 sender
• 2 in. x 2 in. fuel level gauge reads empty to full in 1/4 steps, set for 0-90 ohm senders
• Speedometer features 0-60 time, 1/4-mile elapsed time and high-speed recall
• Approximately 12 in. x 24 in. ABS plastic backing board
• Tinted smoke plexiglass sheet and mounting hardware included
• Separate circuit boards allow gauges to be positioned as needed

Intellitronix BG10003W Installation Notes:

• Fuel gauge is set for 0-90 ohm senders; senders with a different ohm range require reprogramming
• Water temperature sender ships with a 1/2 in. bushing; a 3/8 in. bushing is sold separately
