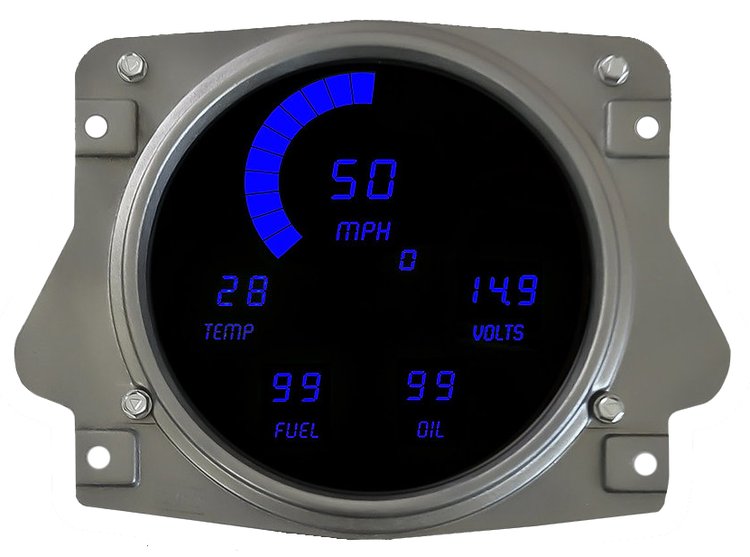

Intellitronix DP1020B LED Direct Replacement Digital Bargraph Dash Kit Features:

• Direct-fit printed circuit boards
• Blue LED readout display
• Custom-fit smoked plexiglass faceplate
• Universal temperature, oil pressure, and speedometer sending units
• Installation instructions

Notes:

• Housing/bezel not included
• Designed for vehicles Without electronic transmission or cruise control
• Includes 1/2 in. bushing for the oil pressure sender, 3/8 in. is available upon request

Speedometer:

• Reads 0-255 MPH
• Odometer and trip meter
• One-button calibration
• 0-60 time, 1/4 mile elapsed time, and high-speed recall
• Includes S9024 sending unit

Tachometer:

• Displays 0-9,900 RPM
• Readout can be displayed in 100 RPM increments

Water Temperature:

• Displays 50-250 Degrees F
• 1/2 (.500) in. bushing

Oil Pressure:

• Reads 0-99 psi

Voltmeter:

• Reads 7.0-18.0 V
• No sending unit required

Fuel Level:

• Fuel Level is programable to four different ranges:
  • 73-10 ohm
  • 16-158 ohm
  • 22-145 ohm
  • 240-33 ohm.
