Breakdown of Included Items

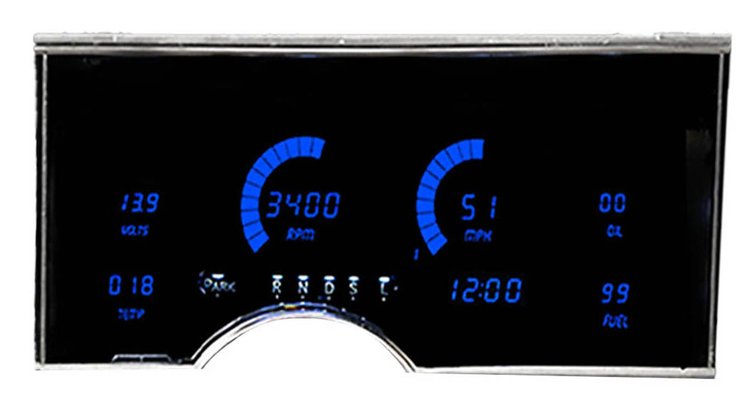

Intellitronix DP1907B LED Dash Kit Features:

• Includes turn signals, high beam, park brake indicators
• Direct-fit printed circuit boards
• Blue LED readout display
• Custom-fit smoked plexiglass faceplate
• Universal temperature, oil pressure, and speedometer-sending units

Intellitronix DP1907B LED Dash Kit Notes:

• Mounting hardware included
• Housing/bezel not included

Intellitronix DP1907B LED Dash Kit Speedometer:

• Reads 0-255 MPH
• Odometer and trip meter
• One-button calibration
• 0-60 time, 1/4 mile elapsed time, and high-speed recall
• Can be used with S9013 sending unit

Intellitronix DP1907B LED Dash Kit Tachometer:

• Displays 0-9,9999 RPM in 100, 10, or 1 RPM increments
• Programmable for 1-2-4-6-8-10-12 cylinder engines

Intellitronix DP1907B LED Dash Kit Water Temperature:

• Displays 0-350 degrees F
• Includes S8023 sending unit
• 1/2 (.500) in. bushing

Intellitronix DP1907B LED Dash Kit Fuel Level:

• Reads 0-99 percent in 1 percent increments
• Works with 4 different ohm range sending units
  • 73-10 ohms
  • 0-90 ohms
  • 10-180 ohms
  • 240-33 ohms

Intellitronix DP1907B LED Dash Kit Oil Pressure:

• Displays 0-99 psi
• Includes S8868 sending unit
• 1/8 in. NPT thread
• 2-wire hookup

Intellitronix DP1907B LED Dash Kit Voltmeter:

• Displays 7.0-18.0 V
• A sending unit is not required
