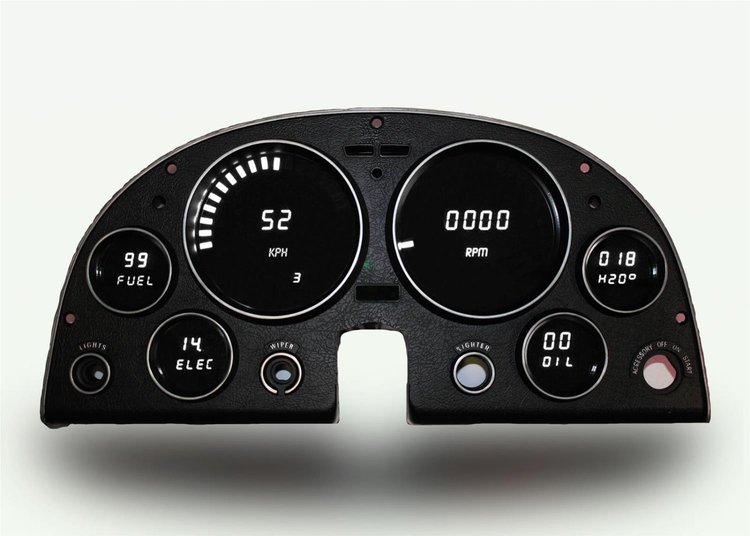

Intellitronix DP2000W LED Direct Replacement Digital Dash Kit Features:

• Direct-fit printed circuit boards
• White LED readout display
• Custom-fit smoked plexiglass faceplate
• Universal temperature, oil pressure, and speedometer sending units
• Turn Signals
• High-beam Indicator
• Installation instructions

Notes:

• Housing/bezel not included
• Includes 1/2 in. bushing for the oil pressure sender, 3/8 in. is available upon request

Speedometer:

• Reads 0-255 MPH
• Odometer and trip meter
• One-button calibration
• 0-60 time, 1/4 mile elapsed time, and high-speed recall
• Includes S9013 sending unit

Tachometer:

• Displays 0-9,900RPM
• Readout can be displayed in 100 RPM increments

Water Temperature:

• Displays 100-300 Degrees F
• Includes S8013 sending unit
• 1/2 (.500) in. bushing

Oil Pressure:

• Reads 0-100 psi
• Includes S8434 oil pressure sending unit

Voltmeter:

• Reads 7.0-25.5 V
• No sending unit required

Fuel Level:

• Displays 0-99% range in 1% increments and works with existing GM fuel level sending unit.
