Breakdown of Included Items

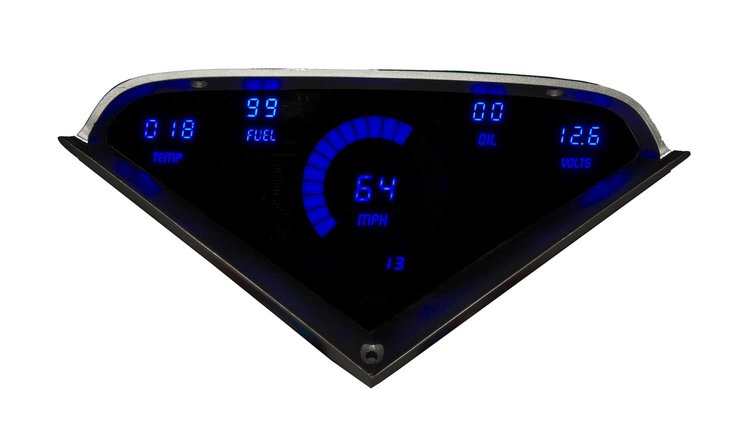

Intellitronix DP6000B Features:

• Direct-fit printed circuit boards
• Blue LED readout display
• Integrated turn signals and high beam indicators
• Custom-fit smoked plexiglass faceplate
• Universal temperature, oil pressure, and speedometer sending units
• Installation instructions

Notes:

• Housing/bezel not included
• For vehicles without electronic transmission or cruise control
• Includes 1/2 in. bushing for the oil pressure sender, 3/8 in. is available upon request

Speedometer:

• Reads 0-255 MPH
• Odometer and trip meter
• One-button calibration
• 0-60 time, 1/4 mile elapsed time, and high-speed recall

Tachometer:

• Displays 0-9,900 RPM in 100 RPM increments

Water Temperature:

• Displays 100-300 Degrees F
• Includes S8013 sending unit
• 1/2 (.500) in. bushing

Oil Pressure:

• Reads 0-100 psi
• Includes S8434 oil pressure sending unit

Voltmeter:

• Reads 7.0-25.5 V
• No sending unit required

Fuel Level:

• Reads 0-99 percent in 1 percent increments
• Works with factory GM sending units
