Breakdown of Included Items

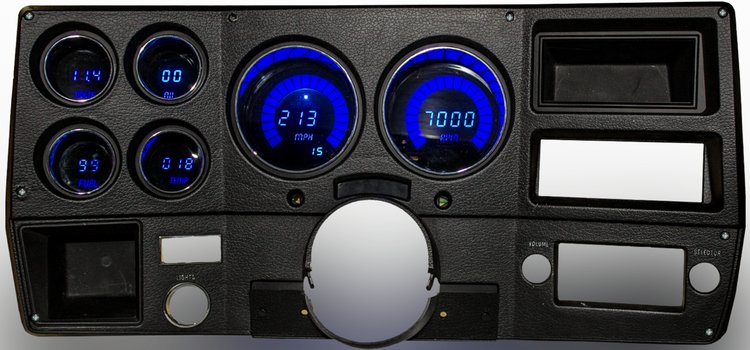

DP6004B Note:

• Housing/Bezel Not Included

DP6004B Features:

Tachometer: reads up to 9,999 RPM

• Microprocessor controlled with peak RPM memory recall
• RPM-activated switch can handle up to 3 amps
• 0-9,999 readout in 100, 10, or 1 RPM increments
• Compatible with 1-2-4-6-8-10-12 cylinder engines

Speedometer: reads up to 255 MPH

• 3-3/8 in. diameter and 1-1/2 in. deep
• Includes odometer, trip meter, one-button calibration (regardless of tire size, gear ratio, or transmission), 0-60 time, high-speed recall, with a push of a button
• Compatible with electronic cruise control senders
• Includes S9013 sender (universal speedometer sending unit), which can be used on vehicles that do not have functional cruise control
• Automatic night-dimming

Voltmeter: reads from 12-16 volts

• Automatic night-dimming
• Sending unit not required

Oil Pressure: reads 0-80 PSI

• Automatic night dimming
• Includes S8434 sender

Water Temperature: reads 160-240 degrees F

• Automatic night-dimming
• Includes S8013 sender

Fuel Level: reads empty to full in 1/4 increments

• Works with most existing fuel level sending units (set at industry standard 0-90 ohms)
• Automatic night-dimming
• Includes in-dash mounting hardware and installation instructions
• Includes turn signals and high beam indicator

FAQ:

Are digital gauges better?

• Digital gauges, like the Intellitronix LED digital gauge panel for 1973-1987 Chevy trucks or the 85 C10 digital dash, offer several advantages over traditional analog gauges. They provide precise readings, and customizable displays, and often have additional functionalities, making them popular among modern vehicle enthusiasts.

What is a digital gauge in a car?

• A digital gauge, exemplified by the Intellitronix C10 wiring diagram or the C10 LS swap gauge cluster, is an electronic instrument displaying vehicle parameters using digital readouts. It utilizes digital technology to present data such as speed, RPM, temperature, and fuel levels in a clear, easy-to-read format.

What is a digital instrument cluster?

• A digital instrument cluster, like the Intellitronix LED digital gauge panel for 1973-1987 Chevy trucks, replaces traditional analog clusters with digital display screens. It showcases vital vehicle information digitally, offering enhanced readability, customization options, and modern aesthetics.

What does an instrument cluster do?

• An instrument cluster, whether digital or analog, provides essential vehicle data to the driver. It displays information such as speed, fuel level, engine RPM, and warning indicators, allowing the driver to monitor the car's performance and vital functions while driving.
