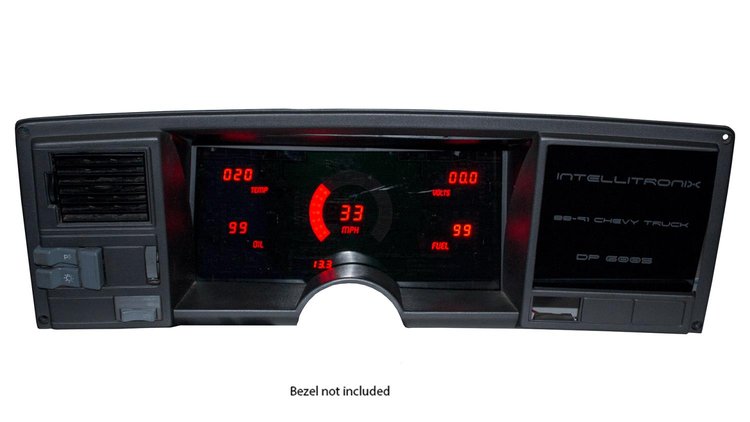

LED Digital Dash Kit For 1988-1991 Chevy Truck [Red]
InfoVehicle Info Needed
INTELLITRONIXPART NUMBER: 556-DP6005R

LED Digital Dash Kit For 1988-1991 Chevy Truck [Red]

$52719
ShippingShips on 01/06/2027
Lowest PriceLowest Price Guarantee

Items You Need

Heavy Duty Circuit Tester for 6, 12 & 24 Volt Systems

JEGS

Heavy Duty Circuit Tester for 6, 12 & 24 Volt Systems

Part Number : 555-80569
$899$9.99
You Save$1.00
Digital Multimeter

JEGS

Digital Multimeter

Part Number : 555-W2974
$1599$22.09
You Save$6.10
Dielectric Grease, 1 oz. Tube

JEGS

Dielectric Grease, 1 oz. Tube

Part Number : 555-28020
$499$5.99
You Save$1.00
10799 Contact Cleaner, Non-Chlorinated

LUCAS OIL

10799 Contact Cleaner, Non-Chlorinated

Part Number : 639-10799
$1017$10.99
You Save$0.82

Chevy Truck
LED Digital Dash
  • 1988-1991 Chevy Truck
  • Red
  • Speedometer: 0-255 MPH
  • Tachometer: 0-9,900 RPM
  • Water Temperature: 100-300 Degrees F
  • Oil Pressure: 0-100 PSI
  • Voltmeter: 7.0-25.5 V

    Intellitronix DP6005R Features:

    • Direct-fit printed circuit boards
    • Red LED readout display
    • Custom-fit smoked plexiglass faceplate
    • Universal temperature, oil pressure, and speedometer sending units
    • Installation instructions

    Notes:

    • Housing/bezel not included

    Speedometer:

    • Reads 0-255 MPH
    • Odometer and trip meter
    • One-button calibration
    • 0-60 time, 1/4 mile elapsed time, and high-speed recall

    Tachometer:

    • Displays 0-9,900 RPM in 100 RPM increments

    Water Temperature:

    • Displays 100-300 Degrees F
    • Includes S8013 sending unit
    • 1/2 (.500) in. bushing

    Oil Pressure:

    • Reads 0-100 psi
    • Includes S8434 oil pressure sending unit

    Voltmeter:

    • Reads 7.0-25.5 V
    • No sending unit required

    Fuel Level:

    • Reads 0-99 percent in 1 percent increments
    • Works with factory GM sending units
    • All-Inclusive LED Digital Dashes

      Intellitronix LED Direct-Replacement Digital Dash Kits will modernize the interior look of your classic ride. These high-quality gauge panels come complete with everything you need to upgrade from a standard stock dash to a LED-illuminated digital display.

    Part TypeInstrument Panel
    Product LineIntellitronix LED Direct Replacement Digital Dash Kits
    BrandINTELLITRONIX
    Package Height4.8
    Package Width8.4
    Package Length20.1
    Weight2.55 PG
    Part CategoryPerformance Parts
    Mount TypeStock
    ColorRed
    QuantitySold as a kit
    Digital Or AnalogDigital
    Package Qty1
    Package TypeEA
