Features:

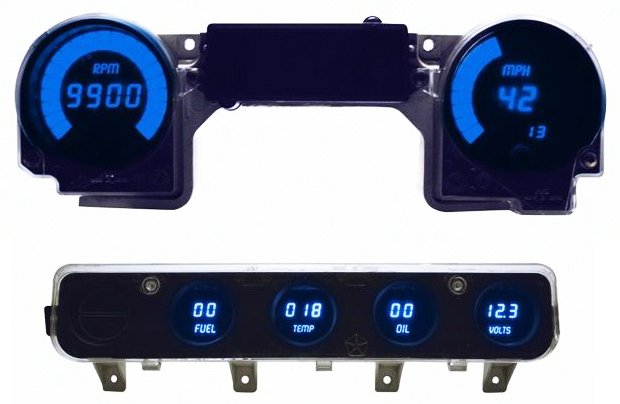

• Fits 1992-1995 Jeep YJ

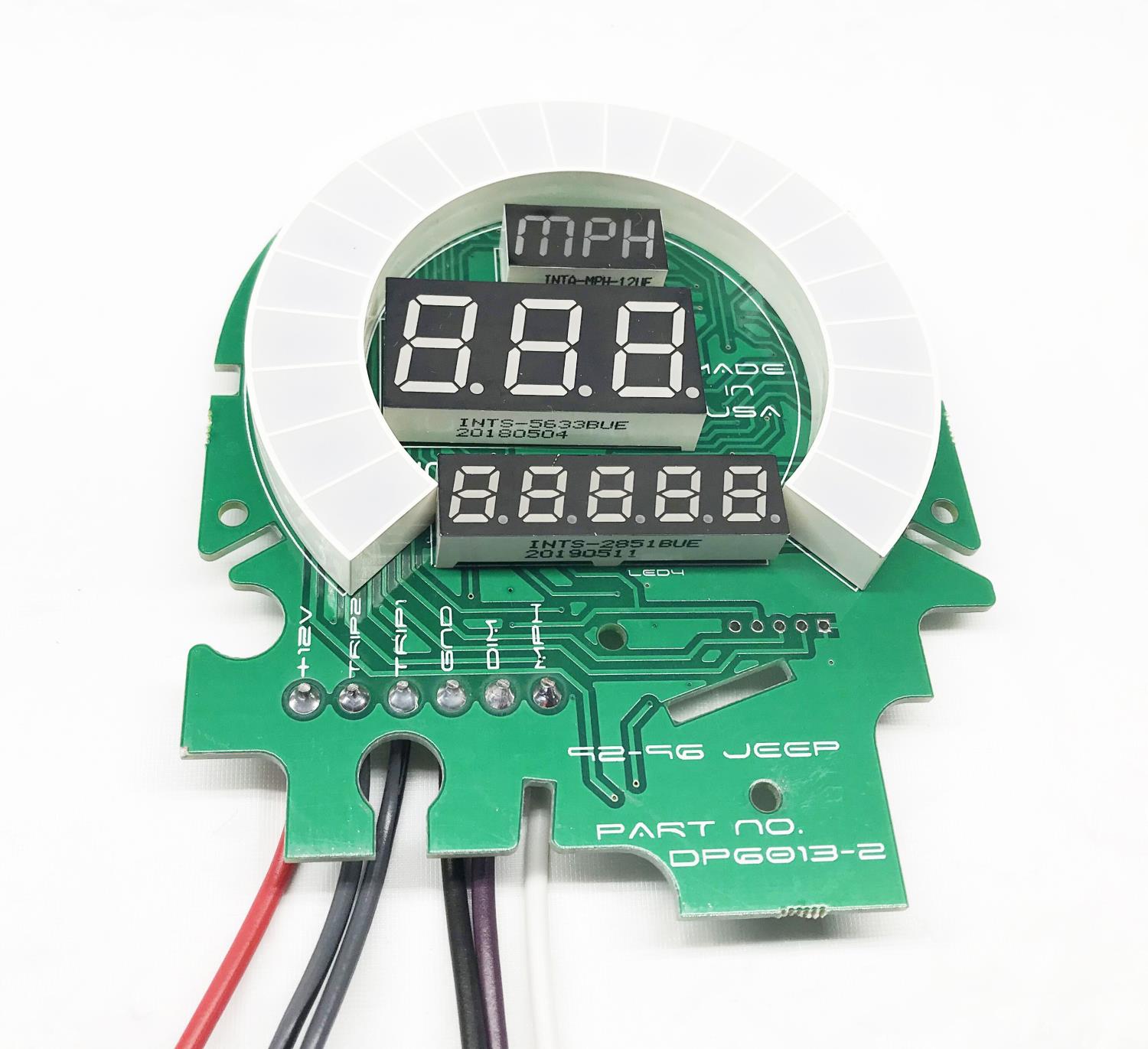

• Direct-fit printed circuit boards
• Blue LED readout display
• Custom-fit smoked plexiglass faceplate
• Universal temperature, oil pressure, and speedometer sending units
• Sender and sensor for vehicles without electronic transmission or cruise control
• Installation instructions

Notes:

• Housing/bezel not included
• Clock not included
• Turn signals, high beam, parking brake, and 4WD indicators must be retained from the original dash

Speedometer:

• Reads 0-255 mph
• Odometer and trip meter
• One-button calibration
• 0-60 time, 1/4 mile elapsed time, and high-speed recall
• Can be used with electronic cruise control senders or use with included S9024 universal speedometer sending unit

Tachometer:

• Displays 0-9,900 rpm in 100 rpm increments

Water Temperature:

• Displays 100-260 degrees F
• Includes S8013 sending unit
• 1/2 (.500) in. bushing

Oil Pressure:

• Reads 0-100 psi
• Includes S8434 oil pressure sending unit

Voltmeter:

• Reads 10.0 -18.0 V
• No sending unit required

Fuel Level:

• Reads 0-99% in 1% increments
• Programmable for Jeep/Chrysler, Ford, GM, VDO (10-180 ohms) and aftermarket (240-33 ohms)
• Works with stock fuel sender; 73-10 ohms
