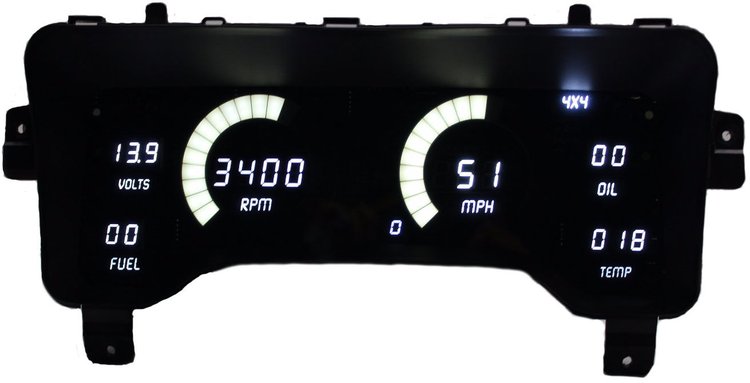

DP6014W Features:

• Includes turn signals, high beam, brake, and 4x4 indicators
• Direct-fit printed circuit boards
• White LED readout display
• Custom-fit smoked plexiglass faceplate
• Universal temperature, oil pressure, and speedometer sending units

Notes:

• Housing/bezel not included

Speedometer:

• Reads 0-255 MPH
• Odometer and trip meter
• One-button calibration
• 0-60 time, 1/4 mile elapsed time, and high-speed recall
• Can be used with S9013 sending unit

Tachometer:

• Displays 0-6,000 RPM in 300 RPM increments
• Programmable for 4-6-8 cylinder engines

Water Temperature:

• Displays 100-300 Degrees F
• Includes S8023 sending unit
• 1/2 (.500) in. bushing

Fuel Level:

• Reads 0-99 percent in 1 percent increments
• Works with Ford, GM, Chrysler, VDO (10-180 ohms), and aftermarket (240-33 ohms) sending units

Oil Pressure:

• Displays 0-100 psi
• Includes S8868 sending unit
• 1/8 in. NPT thread
• 2-wire hookup
