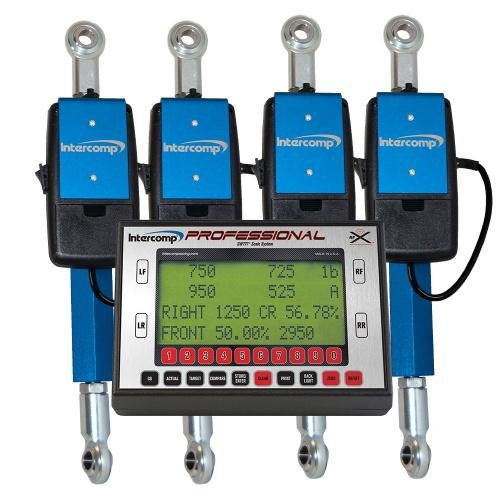

RFX Wireless Suspension Load Stick Set with Indicator, 3,000 lbs. Load Cell Capacity, 15-25.250 in. Range Adjustment
InfoVehicle Info Needed
INTERCOMPPART NUMBER: 541-174002

RFX Wireless Suspension Load Stick Set with Indicator, 3,000 lbs. Load Cell Capacity, 15-25.250 in. Range Adjustment

$2,59500
ShippingShips on 09/10/2026
Lowest PriceLowest Price Guarantee

Suspension Load Sticks
with Indicator
RFX Wireless Suspension Load Stick Set with Indicator
  • 3,000 lbs. (1,300 kg) Load Cell Capacity
  • 15-25.250 in. Range Adjustment
  • Spherical Rod Ends with PTFE Heim Joint Inserts
  • Billet Aluminum
  • Blue Anodized Finish
  • Set of 4

    174002 Features:

    • Rates the suspension static load at ride height for all (4) corners simultaneously
    • Wireless communication functionality eliminates unnecessary cables
    • Lubricant-free, non-binding design for precise measurements and readings
    • The hex-shaped load stick bodies are easily extended and retracted using hand tools
    • Ideal for use when a pull-down rig is not available
    • Dimensions:
      • 3.250 in. width (including radio and battery pack)
      • 2.500 in. depth (including radio and battery pack)
      • .500 in. Heim Joint inner diameter

      • Dial-in Your Suspension for Cornering Precision

      Intercomp RFX Suspension Load Sticks are used to quickly determine the critical measurements of a racecars static load suspension and distribution. Using these load sticks will identify the need for exact spring rates and ride height for your vehicle's chassis. They are available in a single or set of two or four for fine-tuning adjustments, and the wireless indicator function eliminates unnecessary cables for a user-friendly experience.

    Part TypeSuspension Set Up Tools
    Product LineIntercomp RFX Wireless Suspension Load Sticks
    BrandINTERCOMP
    Package Height7.0
    Package Width16.0
    Package Length28.0
    Weight17.0 PG
    Part CategoryAccessories
    QuantitySold as a kit
    Part FitmentUniversal
    Package Qty1
    Package TypeEA
