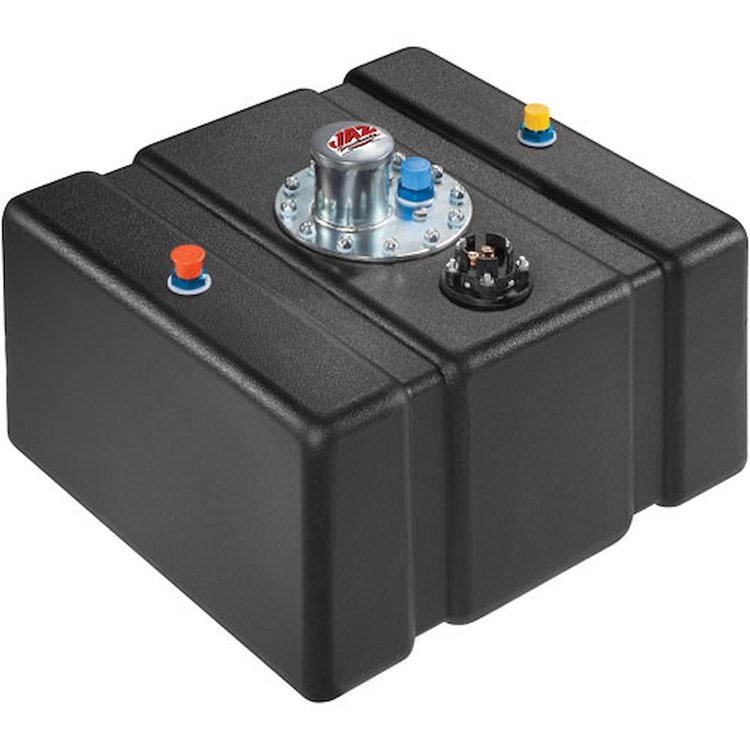

Vehicle Info NeededPro Street Flat Bottom Fuel Cell 12-Gallon 0-90 ohm Without Foam - IMCA-Approved Fill Valve
Ships on 11/03/2026
Lowest Price Guarantee
- Pro Street Flat Bottom Fuel Cell
- 12-Gallon
- Black
- D-Ring Bail Handle Cap Assembly
- 0-90 ohm Fuel Level Sender
- Without Safety Foam
- 17.500 in. L x 16 in. W x 10 in. H
- IMCA-Approved Fill Valve with Check Valve Flapper
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
JAZ Products maintains their own equipment and molds, producing only the highest quality fuel cells. JAZ Pro Street Flat Bottom Fuel Cells are molded in a seamless cross-linked polyethylene outer shell for exceptional quality that exceeds the competition. Each Pro Street Flat Bottom Fuel Cell features an installed fuel level sending unit and a D-ring bail handle cap assembly with a check valve. Available with or without foam, JAZ only uses the best safety foam on the market, which has up to a 10x longer service lifespan than that of other non-fuel approved foams. Every Pro Street Flat Bottom Fuel Cells exceed SFI 28.1 standards and is accepted by most sanctioning organizations.
Show More
Features:
- Molded in seamless cross-linked polyethylene outer shell
- D-ring bail handle cap assembly with check valve
- Available with or without aviation safety foam
- Fuel level sending unit assembly installed
- 0-90, 70-10 or 240-33 ohm sending units available
- One anodized -8 AN outlet fitting with internal pickup hose
- One anodized -8 AN tip valve vent fitting
- 360-Degree mounting strap recesses
- SFI 28.1
Note: Although these fuel cells exceed SFI 28.1, only fuel cells labeled with SFI certification are actually certified. Only fuel cells that are specifically designed for classes that require SFI certification receive a serial number and SFI label. (Additional charges apply for SFI serial number and label.)
