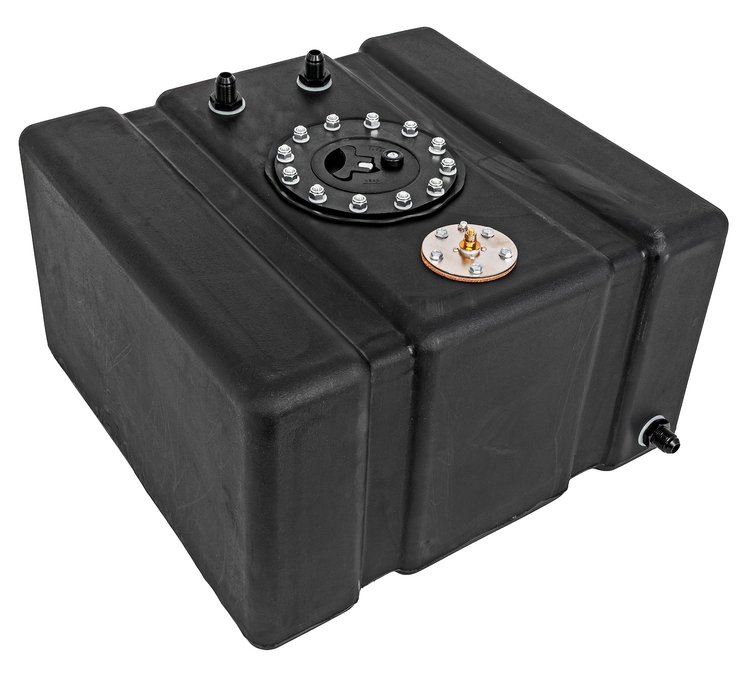

Pro-Street Flat Bottom Fuel Cell 12 Gallon
InfoVehicle Info Needed
JEGSPART NUMBER: 555-15380

Pro-Street Flat Bottom Fuel Cell 12 Gallon

$19499$214.99You Save$20.00
5 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

Straight Max Flow Hose End -8 AN

JEGS

Straight Max Flow Hose End -8 AN

Part Number : 555-100002
$899$9.99
You Save$1.00
45 degree Max Flow Swivel Hose End -8 AN

JEGS

45 degree Max Flow Swivel Hose End -8 AN

Part Number : 555-100012
$1499$16.99
You Save$2.00
90 degree Max Flow Swivel Hose End -8 AN

JEGS

90 degree Max Flow Swivel Hose End -8 AN

Part Number : 555-100022
$1699$18.99
You Save$2.00
Pro-Flo 200 Series Stainless Steel Braided Hose -8 AN [3 ft.]

JEGS

Pro-Flo 200 Series Stainless Steel Braided Hose -8 AN [3 ft.]

Part Number : 555-100920
$1499$16.99
You Save$2.00

Flat Bottom Fuel Cells without Foam
    Pro-Street Flat Bottom Fuel Cell
  • 12 Gallon
  • (1) -8AN Male Outlet
  • (1) -8AN Male Rollover Vent
  • 17"L x 17"W x 11"H
  • Use 555-15532 Mount (sold separately)
  • Made in the USA

  • Constructed from rotationally-molded and cross-linked polyethylene material
  • Specifications: 17” long x 17” wide x 11” high
  • Made in usa with high quality materials and assembly
  • Includes 0-90 ohm sender, one -8an male outlet, one -8an male rollover vent, and one -8an male return
  • Fuel cell mounting kit available separately under part number 555-15532
  • The nominal dimensions that are published are given for reference only. This cell is a rotationally-molded polyethylene unit. The ambient (room) temperature will affect the cooling rate (once released from the mold) and the nominal dimensions. Please measure your cell first before cutting the floor or drilling for the mounts.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

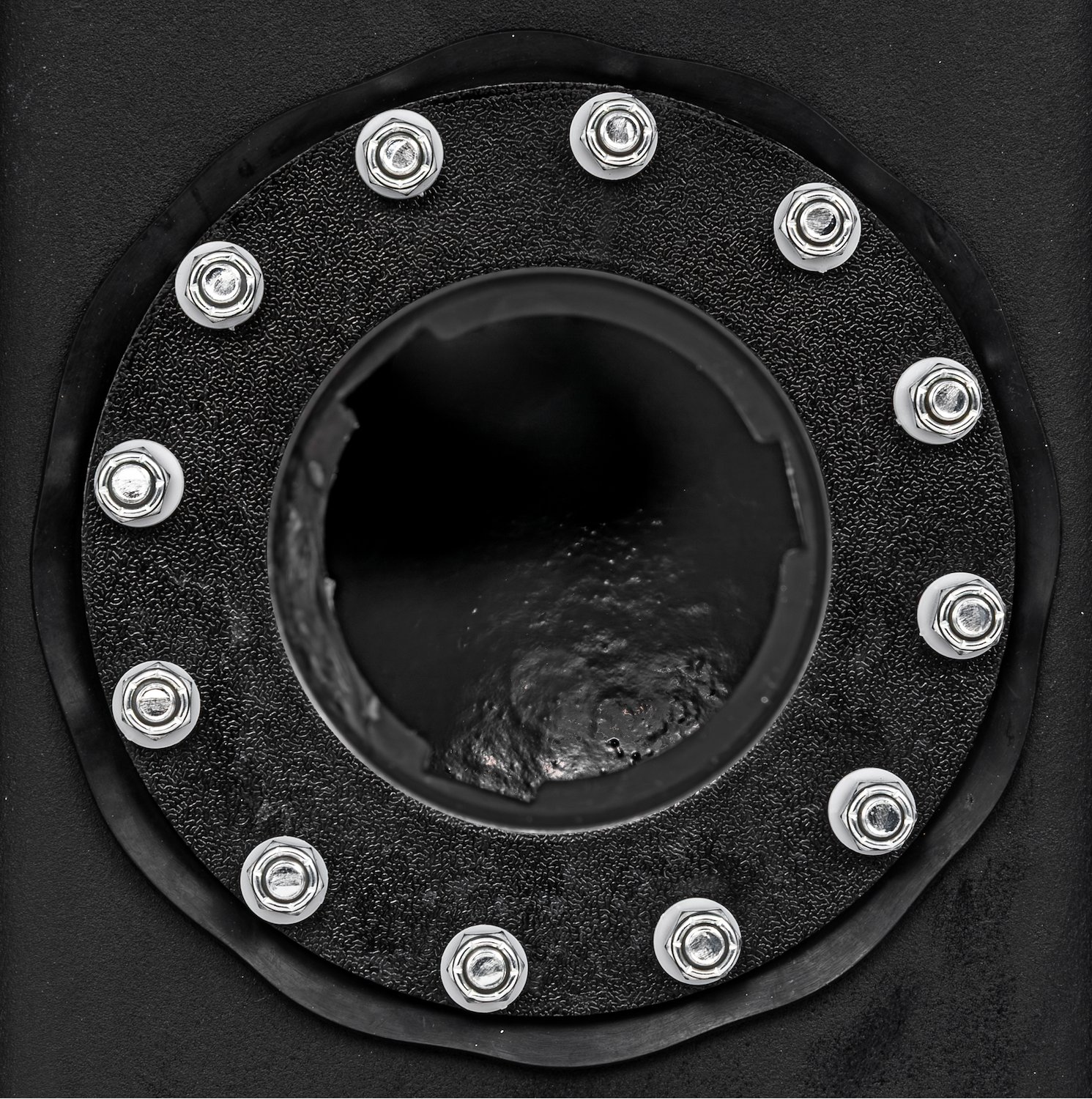

    JEGS Pro-Street Fuel Cells can be used in competition and feature sturdy, yet lightweight, roto-molded and cross-linked polyethylene material construction; a GM-style 0-90 ohm lever-type sending unit; and an aircraft-style flush-mount lever lock lid. Fuel Cells are available in a 2 in. drop sump or flat bottom design.

Part TypeFuel Cell
Product LineJEGS Pro-Street Fuel Cells
BrandJEGS
Package Height14.6
Package Width18.5
Package Length18.9
Weight11.1 PG
Part CategoryPerformance Parts
Sending Unit IncludedYes
Outlet Fitting Size-8 AN
UsageStreet/Strip
SumpNo
Vent Fitting Size-8 AN
Overall Length17 in (431.8 mm)
MaterialPolyethylene
Outlet Fitting QuantityOne
FoamNo
Capacity12 gallons
Sender Ohm Range0 ohms empty, 90 ohms full
Product Height11 in (279.4 mm)
Part FitmentUniversal
Product Width17 in (431.8 mm)
Package Qty1
Package TypeEA
