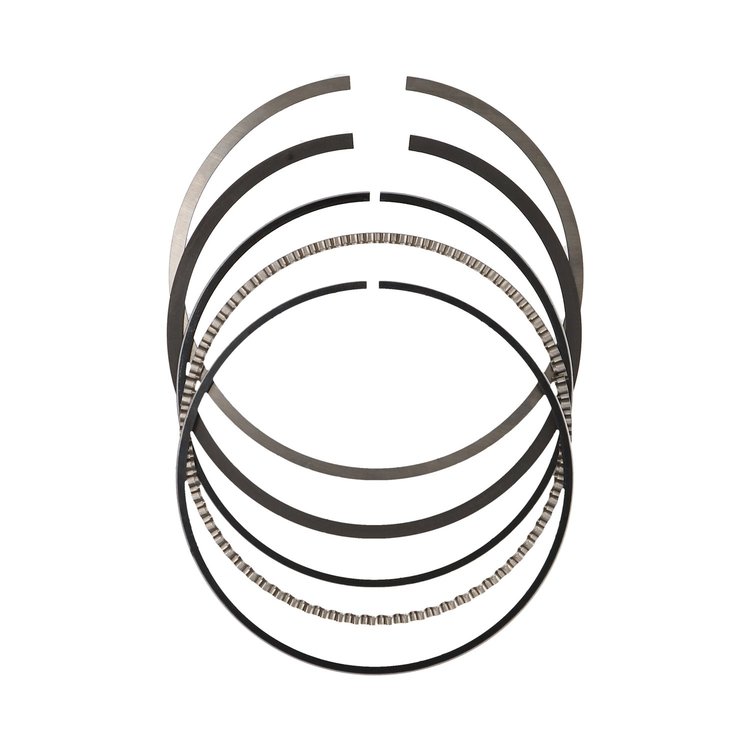

JE Pistons J85008-4468 Features:

JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal.

• Bore Diameter: 4.468 in.
• Ring Type: 3 Ring
• File Fit: Yes
• Top Ring Axial Height: 2.00 mm
• Top Ring Radial Width: 0.200 in.
• Top Compression Ring Thickness: 0.0787 in.
• Top Ring Facing Material: Plasma Moly
• Top Ring Material: Ductile Iron
• Top Ring Shape: Flat Face, Torsional
• Second Ring Axial Height: 5/64 in.
• Second Ring Radial Width: 0.200 in.
• Second Compression Ring Thickness: 0.0780 in.
• Second Ring Facing Material: Phosphate
• Second Ring Material: Iron
• Second Ring Shape: Taper Face, D-wall, Reverse Torsional
• Oil Ring Axial Height: 3/16 in.
• Oil Ring Radial Width: 0.150 in.
• Oil Ring Thickness: 0.188 in.
• Third Ring Facing Material: Carbon Steel
• Third Ring Material: Carbon Steel
• Third Ring Shape: Full Seal, Flex Vent
• Ring Set Thickness: 0.0787 in. Top x 0.0780 in. 2nd x 0.188 in. Oil
• Engine Type: ICE
